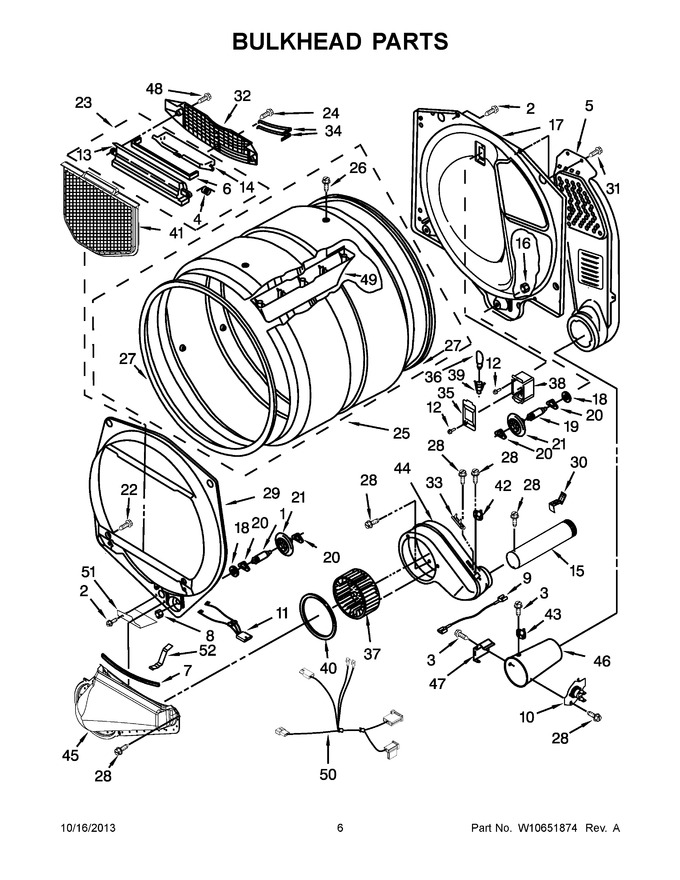

04 - Bulkhead Parts
05 - 8576353 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 4 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.12 | |||||
| 5 | WPW10293765 | Assembly, Air Duct (Replaces: W10293765) |
|
$ 319.99 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.53 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | WP3401707 | Jumper, Wire (Replaces: 3401707) |
|
$ 77.93 | |||||
| 10 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 65.26 | ||||
| 11 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.06 | ||||
| 12 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 7.45 | ||||
| 13 | W11129408 | Housing, Outlet (Replaces: W10153414) |
|
$ 51.20 | |||||
| 14 | W11222846 | Door, Lint Screen (Replaces: W10153413) |
|
Immediately | $ 192.52 | ||||
| 15 | 279936 | Pipe, Exhaust (Replaces: 8066224) |
|
$ 138.76 | |||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 234.13 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 22 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 23 | W11219327 | Washer, Tri Ring Roller, Support Screw (Replaces: W10153423) |
|
$ 85.56 | |||||
| 24 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 13.28 | ||||
| 25 | W10545923 | Assembly, Drum |
|
$ 412.74 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 63.74 | ||||
| 28 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 29 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 196.59 | |||||
| 30 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 7.35 | |||||
| 31 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 32 | W11086603 | Grille, Outlet (Replaces: W10153412) |
|
Immediately | $ 33.21 | ||||
| 33 | WP3392519 | Fuse, Thermal (91 C) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 34 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.25 | ||||
| 35 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 36 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 147.43 | ||||
| 38 | 8578825 | Bracket, Drum Light |
|
$ 19.73 | |||||
| 39 | W11222979 | Socket, Light (Replaces: W10214261) |
|
Immediately | $ 106.91 | ||||
| 40 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 41 | W10120998 | Screen, Lint (Replaces: W10596627) |
|
$ 74.66 | |||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 128.29 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 96.11 | |||||
| 45 | WPW10128606 | Assembly, Lint Duct (Replaces: 8066168) |
|
$ 195.73 | |||||
| 46 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 166.76 | |||||
| 47 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 48 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 49 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 86.01 | ||||
| 50 | W10305870 | Harness, Gas |
|
- | |||||
| 51 | W11257251 | Shield, Blower (Replaces: W10128629) |
|
$ 64.85 | |||||
| 52 | WP8066208 | Clip-spring (Replaces: W10345456) |
|
$ 7.95 |
