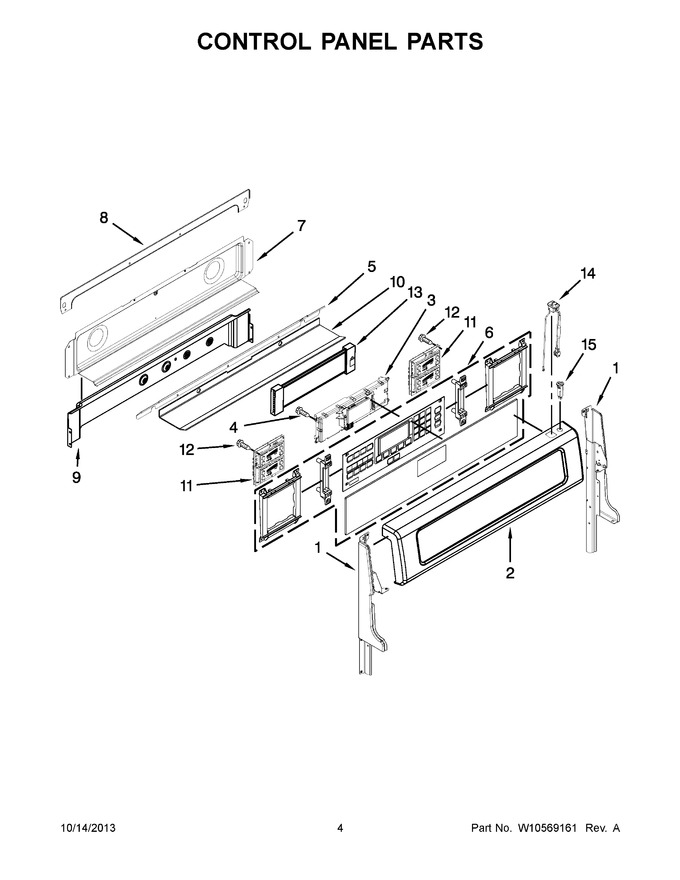

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319111		Support, Backguard (black (right Hand))				$ 43.80
1	W10319109		Support, Backguard (black (left Hand))				$ 83.56
2	W10424188		Console (stainless)				$ 211.89
3	W10365396		Electric, Control Mrc2				$ 401.35
4	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
5	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 86.94
6	W10295110		Assembly, User Interface (black)				$ 237.64
7	W10296773		Cover, Backguard				$ 175.07
8	WPW10292689		Cover, Wire Filler   (Replaces: W10292689)				$ 85.82
9	W10278697		Shield, Vent			Immediately	$ 165.00
10	W10334229		Shield, Backguard		Appelez-nous	-
11	WPW10277011		Interface, User Left   (Replaces: W10277011)				$ 304.07
11	W10287257		Interface, User Right				$ 341.59
12	WP3400702		Screw   (Replaces: 3400702)				$ 11.78
13	WPW10318787		Connector, Flex   (Replaces: W10318787)				$ 107.95
14	WP9757602		Breaker-circuit (black)   (Replaces: 9757602)			Immediately	$ 54.82
15	W10861164		Receptacle (black)   (Replaces: W10203475)			Immediately	$ 16.62

    View Diagram in Separate Window       Print Part List
