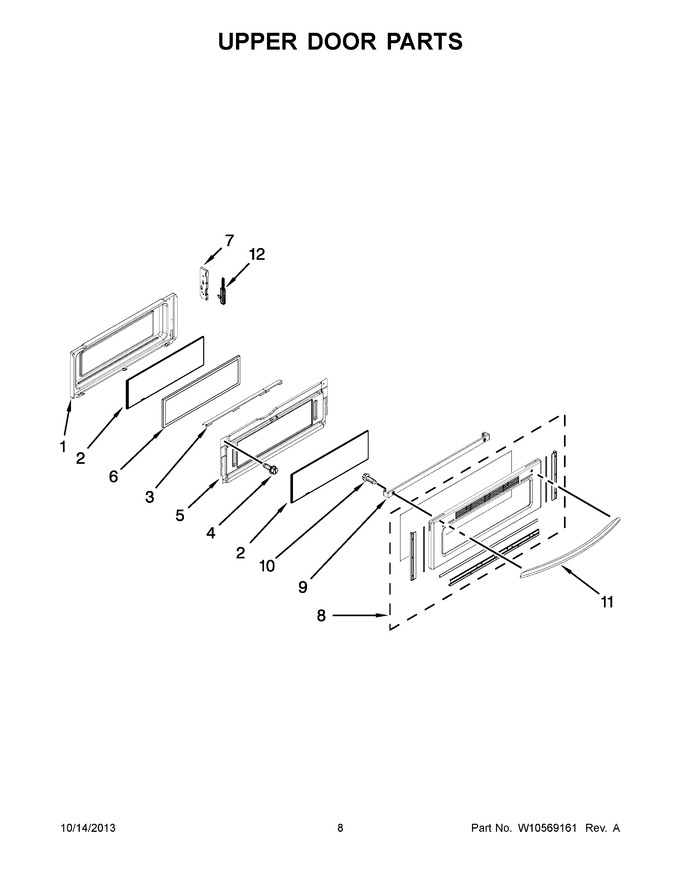

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11103615 | Lining, Door (Replaces: W10485721) |
|
$ 275.05 | |||||
| 2 | W11132120 | Glass, Inner (Replaces: W10272707) |
|
$ 161.40 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 154.74 | |||||
| 4 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 5 | W10485723 | Retainer, Insulation |
|
$ 227.18 | |||||
| 6 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 89.26 | |||||
| 7 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 8 | W10326119 | Assembly, Door (stainless) |
|
- | |||||
| 9 | W10645182 | Bracket, Handle (Replaces: W10296658) |
|
$ 37.56 | |||||
| 10 | WPW10132940 | Screw (Replaces: 3196184) |
|
$ 9.11 | |||||
| 11 | WPW10289076 | Handle, Door (stainless) (Replaces: W10289076) |
|
$ 301.15 | |||||
| 12 | WPW10485732 | Hinge, Door (right) (Replaces: W10485732) |
|
Immediately | $ 50.18 | ||||
| 12 | WPW10485733 | Hinge, Door (left) (Replaces: W10485733) |
|
Immediately | $ 57.88 |
