Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10580767 Tech Sheet, French Appelez-nous -
1 W10579129 Instructions, Installation Appelez-nous -
1 W10579102 Energy Guide Appelez-nous -
1 W10579120 Use & Care Guide Appelez-nous -
1 W10580766 Tech Sheet, English Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 128.15

2 W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 128.02

3 W10850371 Barrier, Vapor Assembly   (Replaces: W10321449) In-Stock Immediately $ 29.59

4 W10831329 Insulation, Four Layer   (Replaces: W10518815) In-Stock Immediately $ 38.97

5 WPW10526115 Access Panel (white)   (Replaces: W10526115) Special Order $ 157.65

5 WPW10526114 Access Panel (black)   (Replaces: W10526114) In-Stock Immediately $ 163.77

6 WPW10751393 Panel, Full Front (includes Items 7 & 9) (black)   (Replaces: W10537384) Special Order $ 346.73

6 WPW10751394 Panel, Full Front (includes Items 7 & 9) (white)   (Replaces: W10537385) Special Order $ 375.43

6 WPW10751392 Panel, Full Front (includes Items 7 & 9) (stainless)   (Replaces: W10537387) Special Order $ 434.52

7 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 62.98

7 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 66.33

7 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 52.48

8 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 86.61

9 W10537395 Pocket, Handle (black) Special Order $ 155.81

9 W10537398 Pocket, Handle (stainless) Special Order $ 172.28

9 W10537396 Pocket, Handle (white) Special Order $ 149.45

10 WP3400071 Screw   (Replaces: 3400071) Special Order $ 7.43

11 WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 6.99

11 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 27.35

12 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.56

13 WPW10350242 Bracket, Control   (Replaces: W10350242) Special Order $ 79.49

14 W10622466 Block, Foam Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

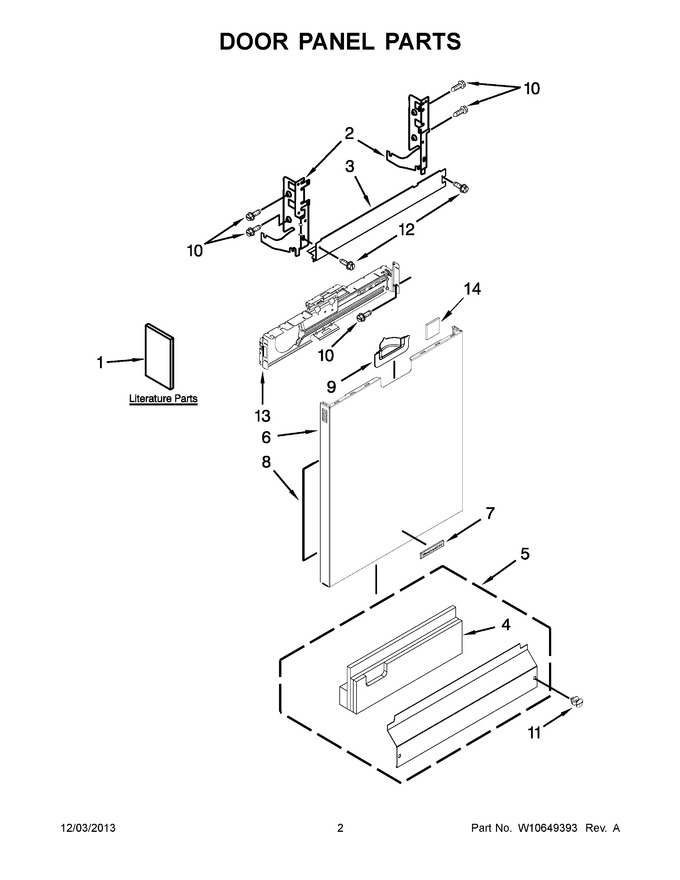

Diagram for KDFE104DWH0
