01 - Cover Sheet


02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)

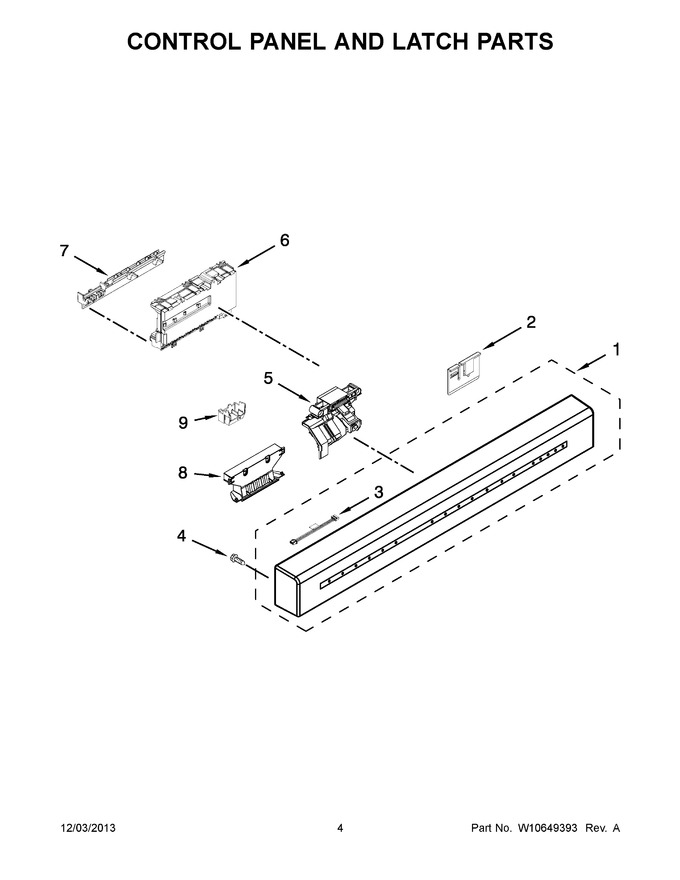

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10537336		Console Assembly (includes Insert) (stainless)				$ 235.44
1	W10537334		Console Assembly (includes Insert) (black)				$ 186.71
1	WPW10537335		Console Assembly (includes Insert) (white)   (Replaces: W10537335)				$ 393.38
2	W11256107		Clip. Control   (Replaces: W10195237)				$ 23.27
3	W10528492		Jumper, 4 Wire				$ 30.11
4	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.55
5	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10574864)			Immediately	$ 34.18
6	W10854215		Control, Electronic   (Replaces: W10538038)				$ 283.77
7	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
8	W10537379		Handle (grey)   (Replaces: W10537382)				$ 27.52
8	W10537379		Handle (black)				$ 27.52
8	W10537379		Handle (white)   (Replaces: W10537380)				$ 27.52
9	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
