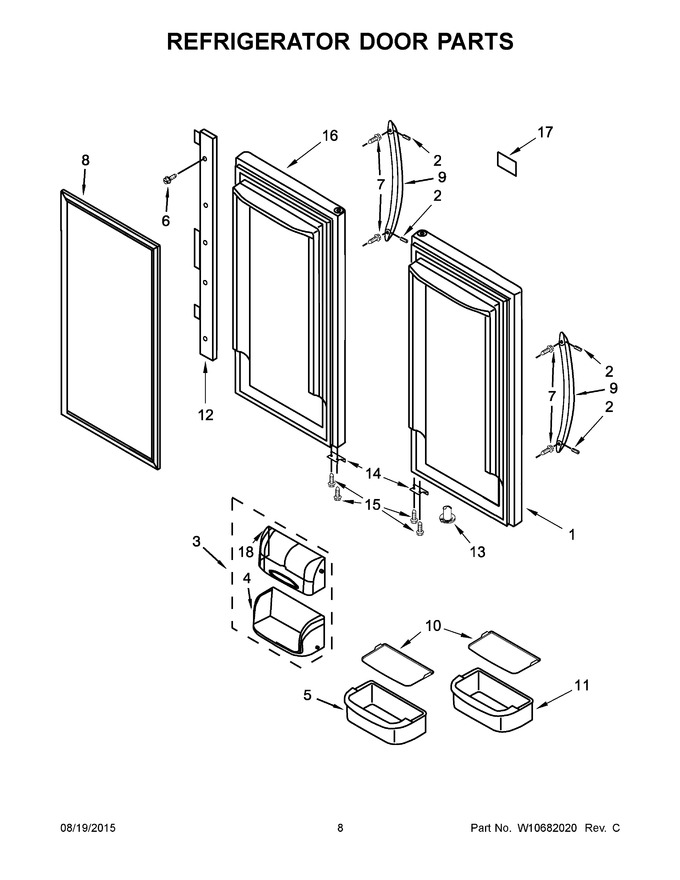

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107881WQ | Door, Left (white) (Replaces: 13107881W) |
|
$ 1,098.13 | |||||
| 2 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 4.54 | ||||
| 3 | WP12744905 | Assembly, Dairy (Replaces: 12744905) |
|
$ 102.59 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 69.51 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 8 | W10830189 | Gasket, Door (white) (Replaces: W10443221) |
|
$ 255.07 | |||||
| 9 | W10586524N | Handle, Door (white) |
|
- | |||||
| 10 | WPW10450021 | Gripper, Medium (Replaces: W10450021) |
|
Immediately | $ 90.84 | ||||
| 11 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 72.98 | ||||
| 12 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 290.84 | ||||
| 13 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.34 | ||||
| 14 | 12968202W | Stop, Door (white) |
|
$ 62.36 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 16 | 13107855WQ | Door, Right (white) (Replaces: 13107855W) |
|
$ 804.37 | |||||
| 17 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 62.98 | |||||
| 18 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 10A | W11402028 | Gripper, Gallon (Replaces: W10449760) |
|
Immediately | $ 80.77 | ||||
| 12A | WP12722803B | Mullion, Door (black) (Replaces: 12722803BN) |
|
$ 220.83 | |||||
| 12B | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
$ 170.11 | |||||
| 13A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 81.29 | |||||
| 13B | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 14A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 13.28 | ||||
| 14B | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 16A | 13107855BQ | Door, Right (black) (Replaces: 13107855B) |
|
$ 1,042.81 | |||||
| 16B | 13107855SQ | Door, Right (stainless) (Replaces: 13107855S) |
|
$ 1,029.48 | |||||
| 17A | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 66.33 | |||||
| 17B | WPW10243391 | Nameplate (grey) (Replaces: W10243391) |
|
$ 52.48 | |||||
| 1A | 13107881BQ | Door, Left (black) (Replaces: 13107881B) |
|
$ 1,125.54 | |||||
| 1B | 13107881SQ | Door, Left (stainless) (Replaces: 13107881S) |
|
$ 1,087.96 | |||||
| 8A | W11368721 | Gasket, Door (black) (Replaces: W10435968) |
|
Immediately | $ 184.78 | ||||
| 8B | W10830162 | Gasket, Door (grey) (Replaces: W10443225) |
|
Immediately | $ 223.74 | ||||
| 9A | W10586525N | Handle, Door (black) |
|
- | |||||
| 9B | WPW10586526 | Handle, Door (stainless) (Replaces: W10586526) |
|
$ 218.84 |
