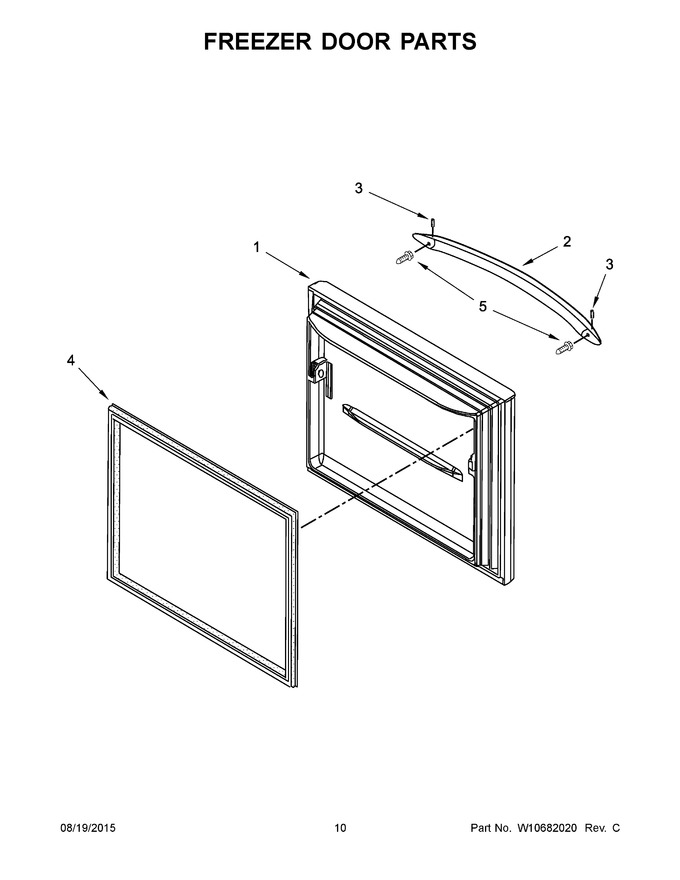

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977864WQ | Door, Freezer (white) (Replaces: 12977864W) |
|
$ 972.77 | |||||
| 2 | WPW10314520K | Handle, Door (white) (Replaces: W10314520KN) |
|
$ 217.49 | |||||
| 3 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 4.54 | ||||
| 4 | W10443319 | Gasket, Door (white) |
|
$ 329.66 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 1A | 12977865BQ | Door, Freezer (black) (Replaces: 12977865B) |
|
$ 909.43 | |||||
| 1B | 12977864SQ | Door, Freezer (stainless) (Replaces: 12977864S) |
|
$ 929.54 | |||||
| 2A | W10314521 | Handle, Door (black) |
|
- | |||||
| 2B | WPW10314522K | Handle, Door (stainless) (Replaces: W10314522K) |
|
$ 252.63 | |||||
| 4A | W10436252 | Gasket, Door (black) |
|
Immediately | $ 326.05 | ||||
| 4B | W10443320 | Gasket, Door (grey) |
|
Immediately | $ 146.55 |
