SELECT A DIAGRAM

02 - Unit, Lit/optional


03 - Air Flow And Control


04 - Cabinet


05 - Installation


06 - Optional

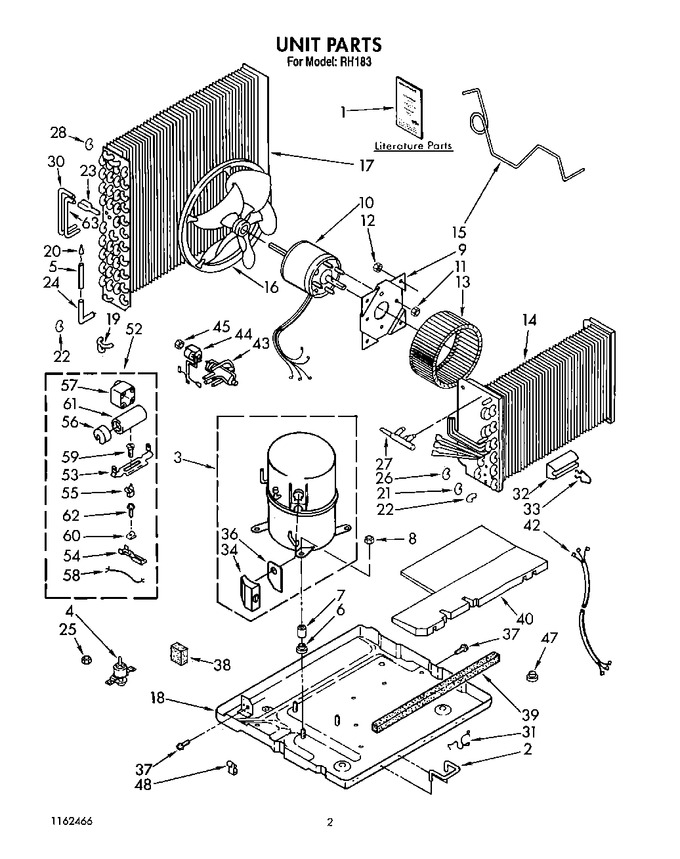

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1157161		Sheet, Tech		Appelez-nous	-
1	LIT1157106		Wiring Diagram		Appelez-nous	-
1	LIT1162435		Operation Guide		Appelez-nous	-
1	LIT1162466		List, Repair Parts		Appelez-nous	-
2	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
3	484348		Compressor		Appelez-nous	-
4	998612		Valve, Condensate		Appelez-nous	-
5	1155598		Strainer And Tube Asm. (includes Illus 20)		Appelez-nous	-
6	475041		Grommet (4)		Appelez-nous	-
7	858116		Sleeve (4)		Appelez-nous	-
8	858121		Nut, Lock (4)		Appelez-nous	-
9	998024		Plate, Fan Motor		Appelez-nous	-
10	1159837		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex Keps 8-32 (4)   (Replaces: 488130)				$ 6.59
12	858122		Nut, Lock		Appelez-nous	-
13	948217		Wheel, Blower		Appelez-nous	-
14	1156255		Evaporator		Appelez-nous	-
15	1159870		Tube, Restrictor (3)		Appelez-nous	-
16	997226		Blade, Fan		Appelez-nous	-
17	1159208		Condenser		Appelez-nous	-
18	997367		Base, Unit		Appelez-nous	-
19	953168		Bend, Return (3-way)		Appelez-nous	-
20	49599		Strainer		Appelez-nous	-
21	855199		Bend, Return Evaporator (7) Condenser (21)		Appelez-nous	-
22	854624		Bend, Return Evaporator (16) Condenser (16)		Appelez-nous	-
23	1162473		Tube, Flow Divider		Appelez-nous	-
24	950814		Tube, 90~		Appelez-nous	-
25	489005		Nut, Hex 1/4-20		Appelez-nous	-
26	855457		Bend, Return (2) (evaporator) Condenser (3)		Appelez-nous	-
27	1156258		Tube, Maniflod (evaporator)		Appelez-nous	-
28	855644		Bend, Return (1)		Appelez-nous	-
30	997235		Connection, Tube (rear)		Appelez-nous	-
31	852272		Clip, Mtg. (3) (base To Front)		Appelez-nous	-
32	996773		Anticipator, Temperature		Appelez-nous	-
33	475577		Clip, Anticipator		Appelez-nous	-
34	948515		Cover, Terminal		Appelez-nous	-
36	947029		Gasket, Terminal Cover		Appelez-nous	-
37	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
38	1160729		Insulation		Appelez-nous	-
39	853170		Seal, Access Cover		Appelez-nous	-
40	997236		Insulation, Base		Appelez-nous	-
42	484136		Harness, Wiring		Appelez-nous	-
43	465260		Valve, Reversing		Appelez-nous	-
44	952293		Coil, Solenoid		Appelez-nous	-
45	WP488826		Nut, Hex 10-32   (Replaces: 487735)				$ 5.88
47	948130		Bushing, Base		Appelez-nous	-
48	642684		Clamp, Restrictor Tube (2)		Appelez-nous	-
52	484381		Hard Start Kit		Appelez-nous	-
53	41629		Xbracket, Capacitor				$ 0.81
54	WP90028		Xterminal (8)   (Replaces: 90028)				$ 5.82
55	350914		Adapter		Appelez-nous	-
56	484340		Xcap, Capacitor		Appelez-nous	-
57	484363		Xrelay		Appelez-nous	-
58	485609		Xwire		Appelez-nous	-
58	485887		Instruction Sheet		Appelez-nous	-
59	487880		Xscrew (2)		Appelez-nous	-
60	488660		Xnut		Appelez-nous	-
61	587164		Xcapacitor		Appelez-nous	-
62	WP965173		Xscrew   (Replaces: 965173)			Immediately	$ 10.68
63	997234		Connection, Tube (front)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
