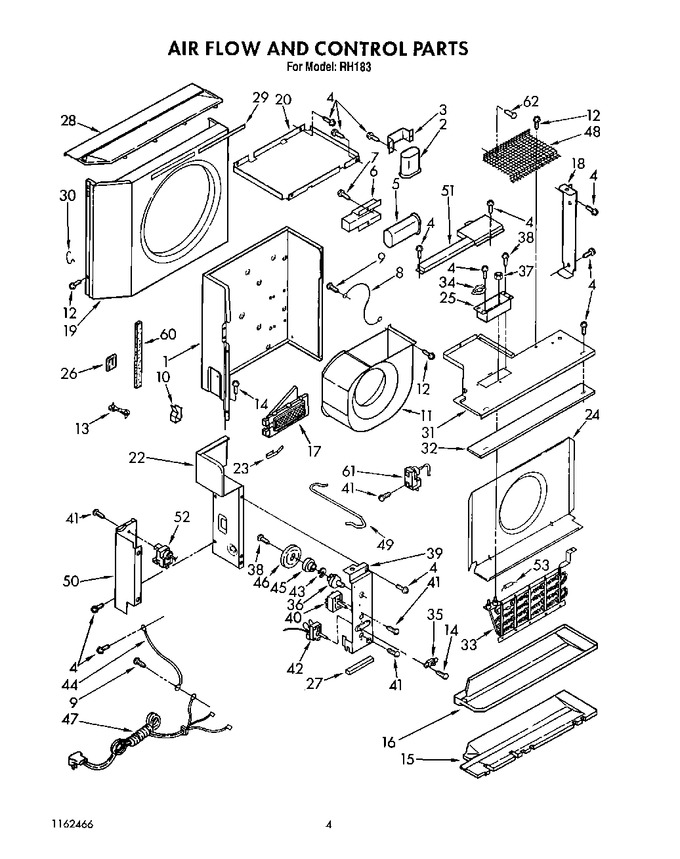

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157747		Wall, Dividing		Appelez-nous	-
2	952078		Capacitor, Run		Appelez-nous	-
3	852992		Bracket, Capacitor		Appelez-nous	-
4	WP489069		Screw, No.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
5	999786		Capacitor, Fan Motor		Appelez-nous	-
6	998009		Bracket, Sheild		Appelez-nous	-
7	WP488729		Screw, S.m. No.8 X 3/8   (Replaces: 488979)			Immediately	$ 7.45
8	998177		Wire, Ground		Appelez-nous	-
9	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
10	648791		Clamp, Cable		Appelez-nous	-
11	998604		Housing, Blower Wheel		Appelez-nous	-
12	WP488729		Screw, No.8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
13	947072		Clamp, Wiring		Appelez-nous	-
14	488624		Screw, No.8 X 3/8		Appelez-nous	-
15	997237		Insulation, Condensate Pan		Appelez-nous	-
16	997238		Pan, Condensate		Appelez-nous	-
17	997221		Door, Exhaust		Appelez-nous	-
18	997397		Adapter, Evaporator		Appelez-nous	-
19	953028		Shroud, Condenser		Appelez-nous	-
20	1156536		Support, Unit (2)		Appelez-nous	-
22	1158150		Extension, Dividing		Appelez-nous	-
23	859369		Spring, Door		Appelez-nous	-
24	952169		Deflector, Heat		Appelez-nous	-
25	854990		Bracket, Mtg. (heater)		Appelez-nous	-
26	1162510		Seal, Outlet Tube		Appelez-nous	-
27	1162509		Seal, Access Cover		Appelez-nous	-
28	997264		Cover, Condenser Shroud		Appelez-nous	-
29	WP854334		Seal, Strip   (Replaces: 997267)				$ 12.55
29	997266		Seal, Strip Louver (2)		Appelez-nous	-
30	994686		Clip, Shroud (2)		Appelez-nous	-
31	997396		Cover, Evaporator		Appelez-nous	-
32	948239		Insulation, Cover		Appelez-nous	-
33	1158583		Heater, Air		Appelez-nous	-
34	995674		Switch, Limit		Appelez-nous	-
35	950529		Switch, Sliding		Appelez-nous	-
36	852868		Shaft, Control		Appelez-nous	-
37	WP488826		Nut, Hex 10-32   (Replaces: 487735)				$ 5.88
38	489092		Screw, No.8-15		Appelez-nous	-
39	950545		Panel, Control		Appelez-nous	-
40	1160356		Switch, Rotary		Appelez-nous	-
41	488734		Screw, 6-32 X .175		Appelez-nous	-
42	1155809		Control, Temperature		Appelez-nous	-
43	00647881		Washer, Spring   (Replaces: 647881)				$ 366.51
44	952477		Wire, Ground		Appelez-nous	-
45	647879		Bushing, Control		Appelez-nous	-
46	647882		Cam, Exhaust		Appelez-nous	-
47	649125		Cable, Appliance		Appelez-nous	-
48	1160859		Guard, Impeller		Appelez-nous	-
49	647883		Wire, Control (blue)		Appelez-nous	-
50	952208		Cover, Control		Appelez-nous	-
51	998601		Cover, Heater		Appelez-nous	-
52	950636		Thermostat, Deicer		Appelez-nous	-
53	484277		Fuse, Heater		Appelez-nous	-
60	997265		Seal, Strip		Appelez-nous	-
61	1155807		Control, Outside Temperature		Appelez-nous	-
62	1161162		Clip, Impeller (2)		Appelez-nous	-
