Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10362169 Shelf, Snack Pan   (Replaces: W10362169) Special Order $ 249.55

2 W11164152 Roller   (Replaces: W10278139) In-Stock Immediately $ 14.17

3 W10257334 Slide, Humidity Special Order $ 55.04

4 W10316452 Housing, Humidity Special Order $ 83.39

5 WPW10440266 Cover, Assembly   (Replaces: W10440266) Special Order $ 258.21

6 W11175841 Snack Pan   (Replaces: W10542034) Special Order $ 179.24

7 WPW10531081 Pan, Crisper   (Replaces: W10531081) In-Stock Immediately $ 186.40

8 WPW10257246 Axle, Roller   (Replaces: W10257246) Special Order $ 32.89

9 WPW10531082 Meat Pan   (Replaces: W10531082) Special Order $ 133.22

10 W11300659 Shelf Assembly   (Replaces: W10315527) In-Stock Immediately $ 230.18

11 WPW10408747 Holder, Filter   (Replaces: W10408747) Special Order $ 29.35

12 W10346771 Filter, Produce Preserver Appelez-nous -

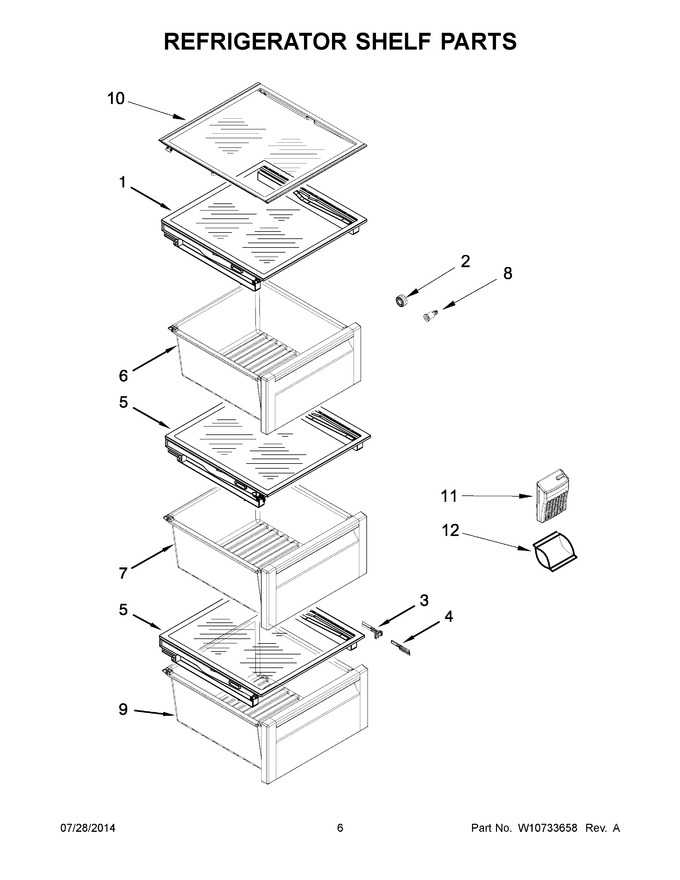

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KSC23C8EYY03
