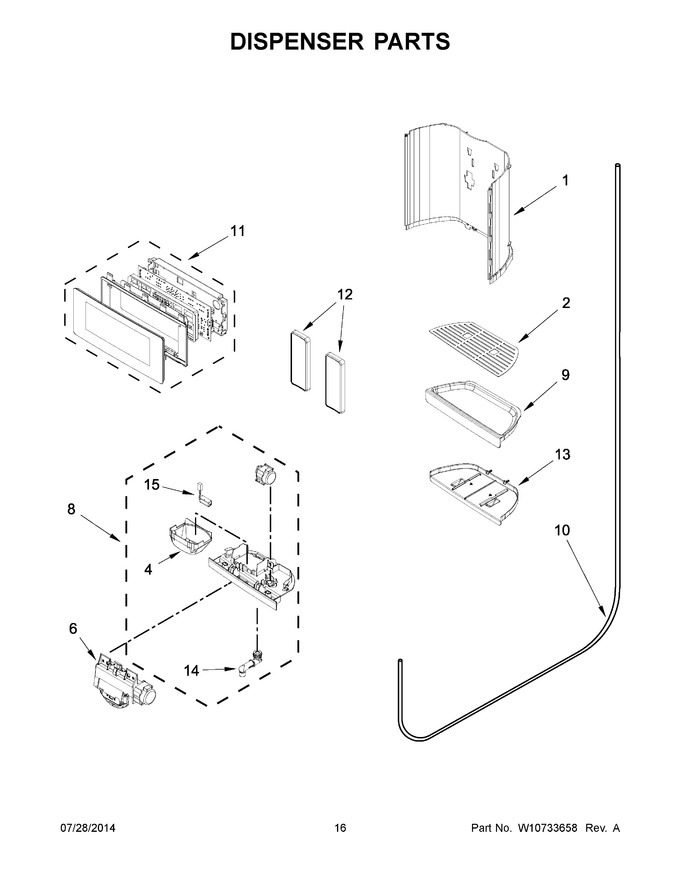

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10317270 | Grate, Drip Tray (Replaces: W10317270) |
|
$ 68.09 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 21.55 | ||||
| 6 | W11130210 | Assembly, Ice Door (Replaces: W10347633) |
|
$ 144.50 | |||||
| 8 | W10353593 | Assembly, Seperator |
|
$ 121.93 | |||||
| 9 | WPW10317261 | Drip Tray, Insert (stainless) (Replaces: W10317261) |
|
$ 75.38 | |||||
| 10 | WPW10386778 | Water Tube (Replaces: W10277960) |
|
Immediately | $ 119.47 | ||||
| 11 | WPW10623106 | Assembly, Electronic Control (Replaces: W10623106) |
|
$ 373.67 | |||||
| 12 | WPW10346924 | Pad, Ice & Water (grey) (Replaces: W10346924) |
|
Immediately | $ 260.69 | ||||
| 13 | W10859920 | Drip Tray, Insert (grey) (Replaces: W10317276) |
|
$ 60.77 | |||||
| 14 | WP2305235 | Spigot (Replaces: W10317267) |
|
Immediately | $ 132.36 | ||||
| 15 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 76.01 |
