SELECT A DIAGRAM

01 - Unit, Literature

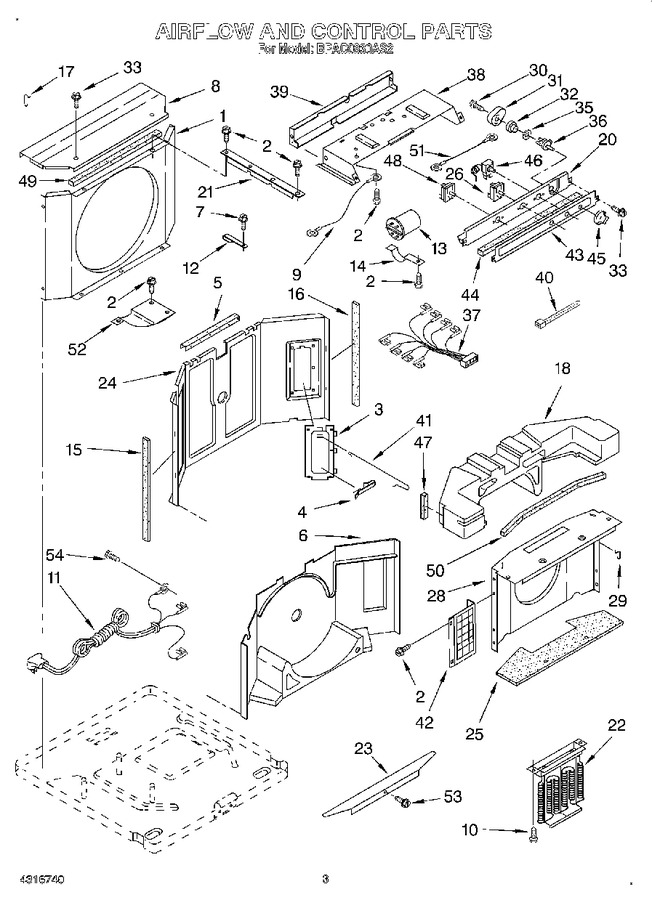

02 - Airflow And Control


03 - Cabinet


04 - Optional


05 - Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1159604		Shroud, Condenser		Appelez-nous	-
2	WP489069		Screw, 8 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
3	1157193		Door, Exhaust		Appelez-nous	-
4	998178		Spring, Door		Appelez-nous	-
5	1162200		Grommet, Divider Wall		Appelez-nous	-
6	1158771		Scroll (lower)		Appelez-nous	-
7	1161561		Screw		Appelez-nous	-
8	1156963		Top, Condenser		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
10	WP489069		Screw, 8 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
11	1167747		Cord, Appliance		Appelez-nous	-
12	1159002		Strap, Dividing Wall		Appelez-nous	-
13	1162595		Capacitor		Appelez-nous	-
14	1167611		Bracket, Capacitor		Appelez-nous	-
15	1158514		Seal, Left Side		Appelez-nous	-
16	1158515		Seal, Right Side		Appelez-nous	-
17	994686		Clip, Shroud (2)		Appelez-nous	-
18	1158772		Scroll, Upper		Appelez-nous	-
20	1160037		Panel, Control		Appelez-nous	-
21	1156939		Support, Unit (2)		Appelez-nous	-
22	1159775		Element, Heater		Appelez-nous	-
23	1159664		Cover, Pan		Appelez-nous	-
24	1156926		Wall, Dividing		Appelez-nous	-
25	1160057		Seal, Evaporator Shroud		Appelez-nous	-
26	1164408		Switch, Rotary		Appelez-nous	-
28	1161022		Shroud Assembly, Evaporator		Appelez-nous	-
29	1164511		Clip, Shroud		Appelez-nous	-
30	489092		Screw, 7-18 X 5/8		Appelez-nous	-
31	997813		Cam, Exhaust		Appelez-nous	-
32	859233		Bushing, Shaft		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (2)		Appelez-nous	-
35	00647881		Washer   (Replaces: 647881)				$ 366.51
36	1158253		Shaft, Control Exhaust		Appelez-nous	-
37	1167527		Harness, Wiring (control Box)		Appelez-nous	-
38	1167612		Box, Control		Appelez-nous	-
39	1156965		Back Panel, Control Box		Appelez-nous	-
40	WPW10339879		Cable, Tie   (Replaces: 1159130)				$ 7.47
41	1157181		Wire, Exhaust Door		Appelez-nous	-
42	1158249		Impeller Guard (2)		Appelez-nous	-
43	1162821		Escutcheon		Appelez-nous	-
44	WP854334		Spacer (2)   (Replaces: 1158066)				$ 12.55
45	1158054		Knob, Controls (3)				$ 5.51
46	1161021		Control, Temperature		Appelez-nous	-
47	1158516		Seal, Housing		Appelez-nous	-
48	1160038		Switch, Fan		Appelez-nous	-
49	WP854334		Seal, Condenser Cover   (Replaces: 1157623)				$ 12.55
50	1160947		Seal		Appelez-nous	-
51	1156982		Wire, Elect		Appelez-nous	-
52	1159580		Cup, Condensate		Appelez-nous	-
53	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
54	WP488234		Screw, 8 X 1/4   (Replaces: 488234)				$ 6.37

    View Diagram in Separate Window       Print Part List
