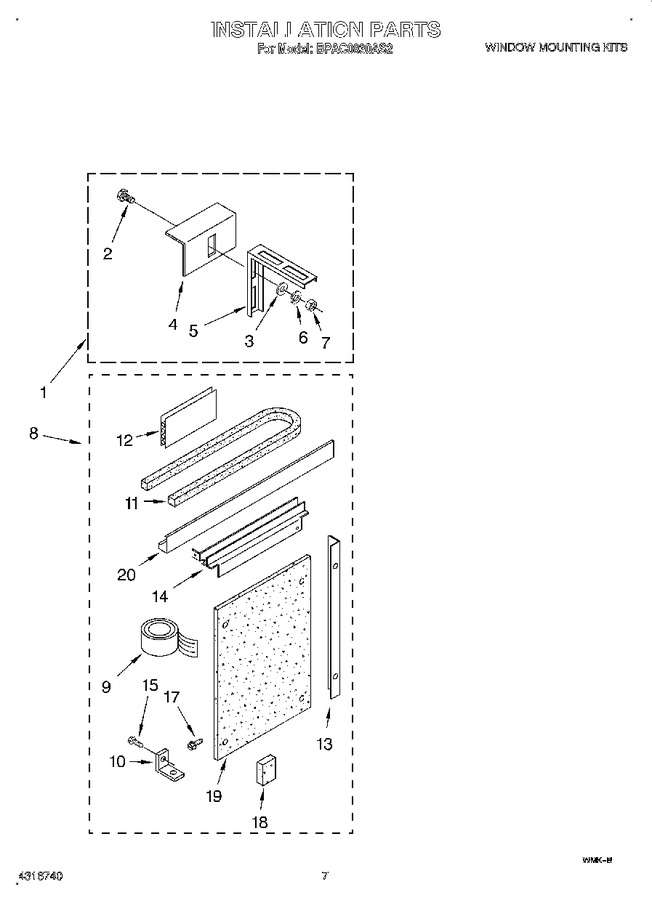

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	485678		Kit, Outside Sill (for Additional Support)		Appelez-nous	-
2	488750		Bolt, 1/4-20 X 3/4 (6)		Appelez-nous	-
3	120393		Washer, Flat (6)		Appelez-nous	-
4	645515		Bracket, Sill (2)		Appelez-nous	-
5	485466		Bracket, Rail (2)		Appelez-nous	-
6	486009		Washer, Lock (6)		Appelez-nous	-
7	487541		Nut, 1/4-20 (6)		Appelez-nous	-
8	485674		Kit, Economy Installation		Appelez-nous	-
9	855265		Seal, Strip		Appelez-nous	-
10	644228		Bracket, Window Lock		Appelez-nous	-
11	855841		Seal, Meeting Rail				$ 7.86
12	212643		Sealer, Permagum			Immediately	$ 86.78
13	645564		Angle, Side (2)		Appelez-nous	-
14	645563		Bracket, Top Mounting (left Side)		Appelez-nous	-
14	645562		Bracket, Top Mounting ((right Side))		Appelez-nous	-
15	47435		Screw, Wood		Appelez-nous	-
17	WP965173		Screw, Sheet Metal (6)   (Replaces: 965173)			Immediately	$ 10.68
18	995274		Spacer, Block (2)		Appelez-nous	-
19	876826		Board, Filler		Appelez-nous	-
20	644380		Channel, Top		Appelez-nous	-
20	1160360		Curtain Kit, Standard Mounting		Appelez-nous	-
20	485676		Wide Window Kit (use With 485674 For Windows Up To 54 Inches Wide)		Appelez-nous	-
	LIT485706		Instructions, Installation (outside Sill Kit)		Appelez-nous	-
	LIT1155973		Instructions Installation (economy Mounting Kit)		Appelez-nous	-
