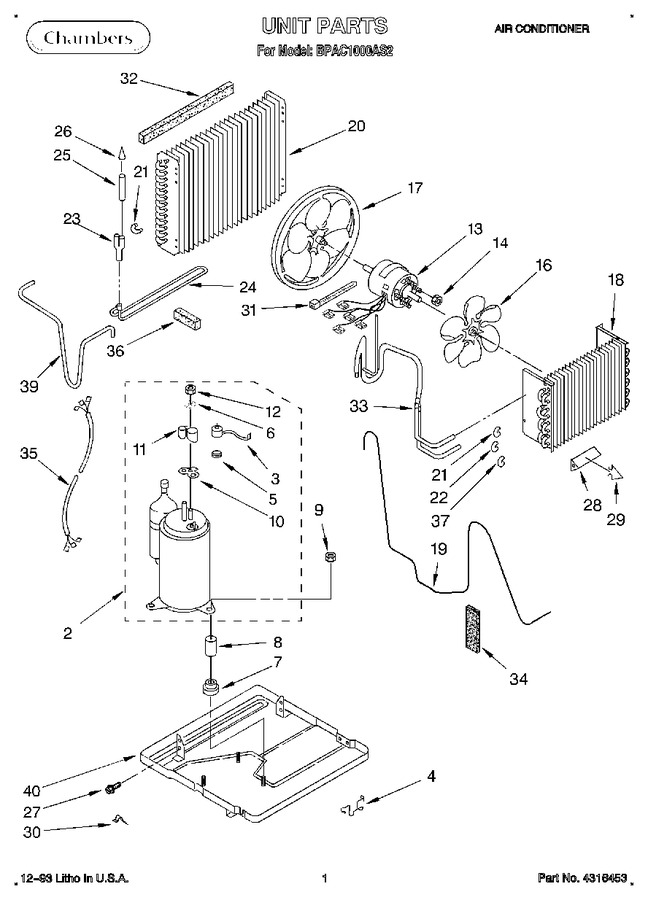

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1163572		Compressor		Appelez-nous	-
3	951865		Overload		Appelez-nous	-
4	949634		Clip, Cabinet Front Mtg (2)		Appelez-nous	-
5	950032		Spring, Overload		Appelez-nous	-
6	950037		Gasket, Nut		Appelez-nous	-
7	WP950021		Grommet, Compressor Mounting (3)   (Replaces: 950021)				$ 78.99
8	950020		Sleeve, Compressor Mounting (3)		Appelez-nous	-
9	858121		Nut, Lock (3)		Appelez-nous	-
10	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
11	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
12	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
13	1164696		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps 8-32 (4)   (Replaces: 488130)				$ 6.59
16	1161594		Blade, Fan (evaporator)		Appelez-nous	-
17	1160946		Blade, Fan (condenser)		Appelez-nous	-
18	1164692		Evaporator		Appelez-nous	-
19	1164700		Tube, Restrictor		Appelez-nous	-
20	1160065		Condenser		Appelez-nous	-
21	708531		Bend, Return Evaporator (6) Condenser (13)		Appelez-nous	-
22	708532		Bend, Return Evaporator (1)		Appelez-nous	-
23	947364		Tube, Flow Divider		Appelez-nous	-
24	1160032		Tube, Extension		Appelez-nous	-
25	951437		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
27	WP489069		Screw, Sm No.8 X 1/2a (7)   (Replaces: 488480)			Immediately	$ 7.56
28	996773		Anticipator, Temperature		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	642684		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	948090		Seal, Condenser Top		Appelez-nous	-
33	1164706		Tube, Suction		Appelez-nous	-
34	1162616		Seal, Anti-rub		Appelez-nous	-
35	484136		Harness, Wiring		Appelez-nous	-
36	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
37	1158407		Bend, Return (1)		Appelez-nous	-
39	1161574		Tube, Discharge		Appelez-nous	-
40	950019		Base		Appelez-nous	-
	LIT1161896		Instructions, Installation		Appelez-nous	-
	LIT1159849		Guide, Operation		Appelez-nous	-
	LIT1165234		Wiring Diagram		Appelez-nous	-
	LIT1165237		Tech Sheet		Appelez-nous	-
