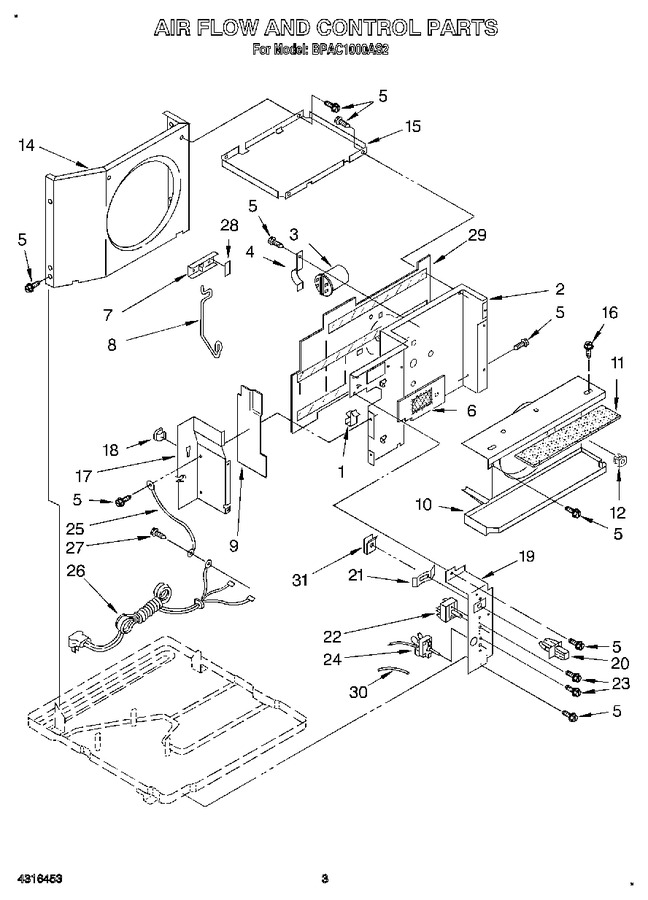

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	852451		Clamp, Cable		Appelez-nous	-
2	1165182		Wall, Dividing		Appelez-nous	-
3	1162594		Capacitor, Running		Appelez-nous	-
4	1162954		Bracket, Running Capacitor		Appelez-nous	-
5	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
6	1162926		Screen, Insulation Assembly		Appelez-nous	-
7	644206		Door, Exhaust		Appelez-nous	-
8	856042		Arm, Exhaust Door		Appelez-nous	-
9	1163514		Insulation, Dividing Wall		Appelez-nous	-
10	948219		Shroud, Evaporator (includes No.11)		Appelez-nous	-
11	948220		Insulation, Evaporator Cover		Appelez-nous	-
12	487808		Fastener, Snap		Appelez-nous	-
14	856037		Shroud, Condenser		Appelez-nous	-
15	1156536		Support, Unit (2)		Appelez-nous	-
16	WP488729		Screw, S.m.no.8 X 1/2 (2)   (Replaces: 487910)			Immediately	$ 7.45
17	994561		Extension, Dividing Wall		Appelez-nous	-
18	644401		Clip, Retainer		Appelez-nous	-
19	996966		Panel, Control		Appelez-nous	-
20	953066		Actuator, Door		Appelez-nous	-
21	858765		Spring, Detent		Appelez-nous	-
22	1165243		Switch, Rotary		Appelez-nous	-
23	488734		Screw, Machine 6-32 X .175 (4)		Appelez-nous	-
24	949431		Control, Tempetature		Appelez-nous	-
25	856094		Wire, Ground		Appelez-nous	-
26	1165241		Cable, Appliance		Appelez-nous	-
27	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
28	1159175		Spacer		Appelez-nous	-
29	1163432		Insulation Dividing Wall		Appelez-nous	-
30	475841		Insulator, Sleeve		Appelez-nous	-
31	1162627		Clip, Exhaust Door Linkage		Appelez-nous	-
