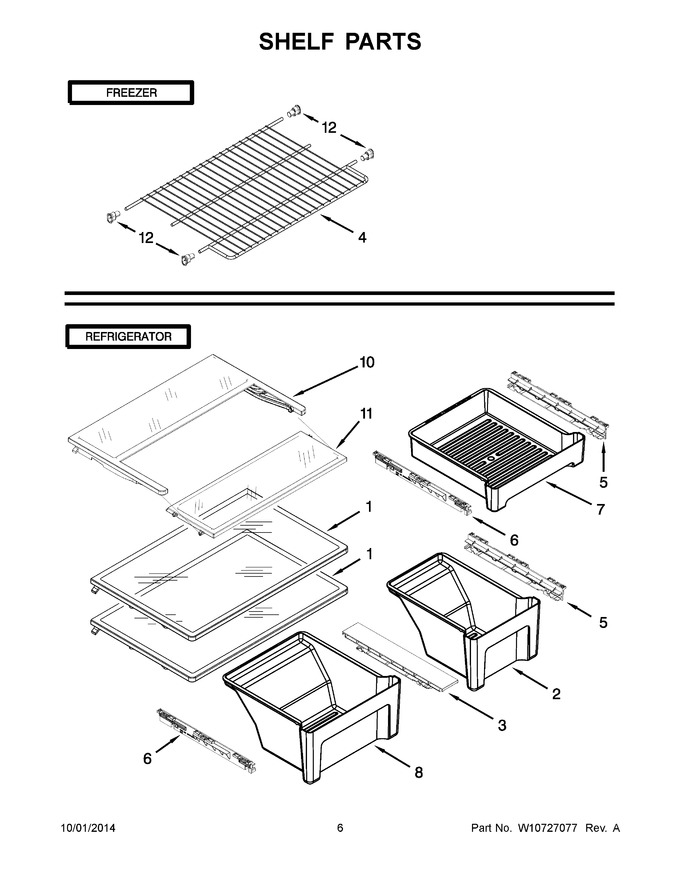

04 - Shelf Parts
05 - Freezer Door Parts
06 - Refrigerator Door Parts
07 - Unit Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10486290 | Assembly, Full Shelf (30") (Replaces: W10486290) |
|
$ 236.95 | |||||
| 2 | W10373950 | Crisper Pan 8 |
|
$ 241.92 | |||||
| 3 | WPW10468557 | Rail, Track (center) (Replaces: W10468557) |
|
Immediately | $ 27.68 | ||||
| 4 | W10477088 | Wire Shelf, Freezer |
|
$ 162.26 | |||||
| 5 | WPW10468556 | Rail, Track (right Hand) (Replaces: W10468556) |
|
Immediately | $ 6.80 | ||||
| 6 | WPW10468555 | Rail, Track (left Hand) (Replaces: W10468555) |
|
Immediately | $ 22.59 | ||||
| 7 | WPW10308848 | Meat Pan (Replaces: W10308848) |
|
$ 146.13 | |||||
| 8 | W10373948 | Crisper Pan 16 |
|
$ 98.48 | |||||
| 10 | WPW10476425 | Flip Down Shelf Assembly (Replaces: W10476425) |
|
Immediately | $ 273.16 | ||||
| 11 | WPW10305243 | Shelf, Flip Down (Replaces: W10305243) |
|
$ 125.05 | |||||
| 12 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 13.23 |
