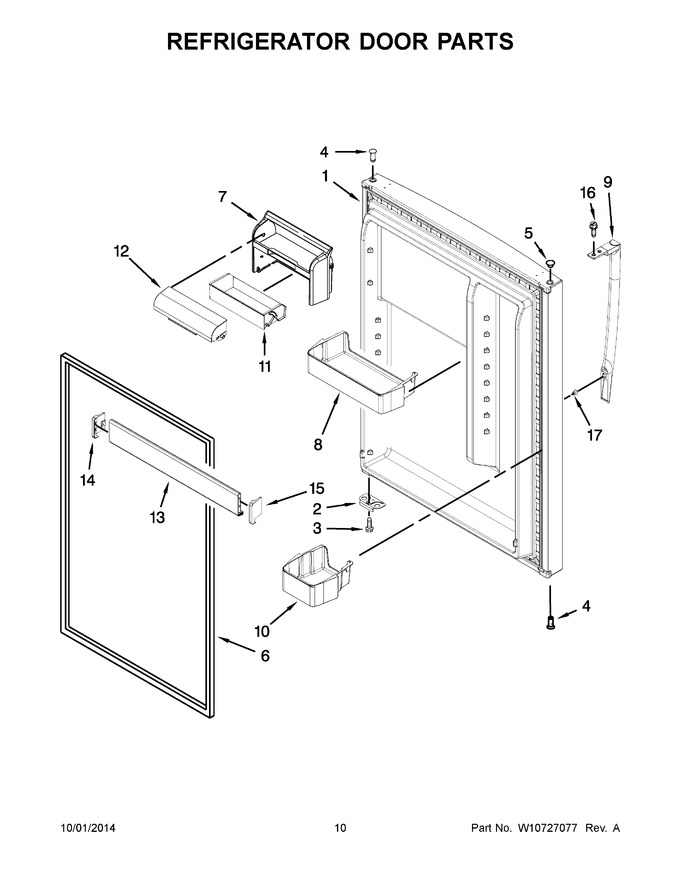

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10329581		Refrigerator Door (includes Illus. 4 & 6) (white)   (Replaces: W10329581)				$ 691.51
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
4	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 11.44
5	WP2212648		Hole Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 7.37
6	2159057		Door Gasket, Magnetic (beige)   (Replaces: 2202874)			Immediately	$ 168.76
7	W10308809		Housing, Compartment				$ 35.60
8	WPW10308868		Bin, Large Door   (Replaces: W10331763)			Immediately	$ 80.18
9	W10838896		Handle (white)   (Replaces: W10366329)				$ 62.25
10	WPW10308867		Bin Short   (Replaces: W10331762)				$ 66.46
11	W10356444		Bin, Tilt Out		Appelez-nous	-
12	WPW10308843		Lid, Utility Flip   (Replaces: W10308843)				$ 71.08
13	W10469909		Trim, Door Shelf				$ 57.41
14	W10338485		Cap, Trim End (left Hand)				$ 10.41
15	W10308871		Cap, Trim End (right Hand)				$ 10.44
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
17	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
1A	LW10576480		Refrigerator Door (includes Illus. 4 & 6) (stainless)   (Replaces: W10576480)				$ 617.08
5A	WP2254517		Hole Plug, Hinge (grey)   (Replaces: 2254517)			Immediately	$ 21.91
6A	W11624977		Door Gasket, Magnetic (grey)   (Replaces: W10279664)				$ 333.47
9A	W10370624		Handle (titanium Sparkle)				$ 38.22

    View Diagram in Separate Window       Print Part List
