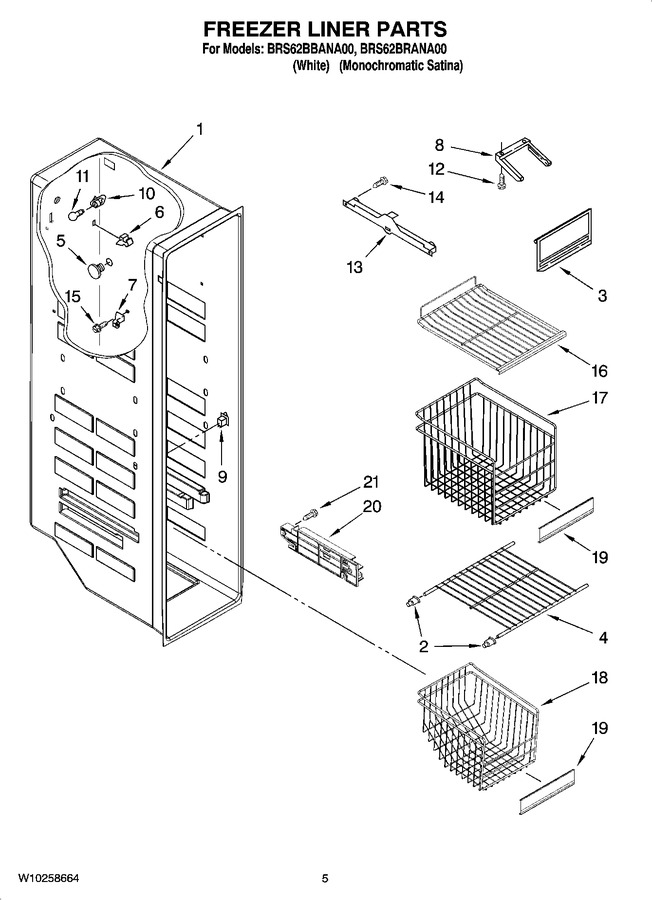

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WPW10130299		Cup, Shelf Mounting (12)   (Replaces: W10130299)			Immediately	$ 14.70
3	2171712		Door, Ice Compartment				$ 69.91
4	WPW10318951		Shelf, Wire   (Replaces: 2327113)				$ 85.76
5	940014		Hole Plug				$ 18.33
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2196206		Support, Stud (4)		Appelez-nous	-
8	1115380		Slide, Ice Door		Appelez-nous	-
9	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
10	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
11	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
12	WP489478		Screw   (Replaces: 489478)				$ 8.18
13	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
13	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
14	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
15	W10142289		Screw   (Replaces: 3400893)				$ 9.61
16	2211743K		Shelf, Slide Out				$ 36.71
17	2312036		Wire Basket, Upper		Appelez-nous	-
18	WP2312034		Wire Basket, Lower   (Replaces: 2312034)				$ 215.99
19	2195904K		Trim, Wire Basket		Appelez-nous	-
20	2301291		Track, Basket (right Side)				$ 154.30
20	2301292		Track, Basket (left Side)				$ 183.69
21	W10759522		Screw   (Replaces: W10004810)				$ 8.24
