01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

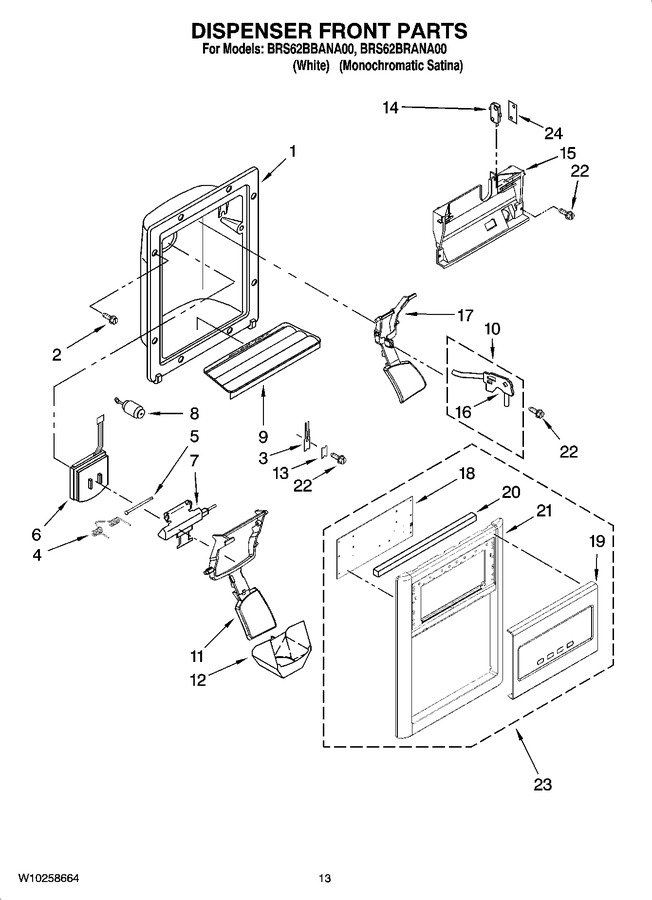

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.12
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 78.66
5	WP2196195		Pin   (Replaces: 2196195)				$ 13.78
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 24.15
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	2324683W		Grille, Overflow (white)		Appelez-nous	-
9	2324683MG		Grille, Overflow (midnight Grey)		Appelez-nous	-
10	2318280		Water Fitting Assembly (includes Water Tube)		Appelez-nous	-
11	W10155161		Lever, Ice Dispenser (apollo Grey)				$ 94.25
11	WPW10152853		Lever, Ice Dispenser (white)   (Replaces: W10152853)				$ 100.66
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.02
13	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.29
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 25.84
15	W10728484		Bracket, Control   (Replaces: W10206221)				$ 54.17
16	WP2304673		Bracket, Dispenser   (Replaces: 2318279)				$ 14.74
17	W10155162		Lever, Water Dispenser (apollo Grey)				$ 68.97
17	WPW10152858		Lever, Water Dispenser (white)   (Replaces: W10152858)			Immediately	$ 98.85
22	W10029740		Screw		Appelez-nous	-
23	W10201266		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
23	W10201267		Front Cover Assembly (includes Items 18, 19, 20 & 21) (apollo Grey)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99
