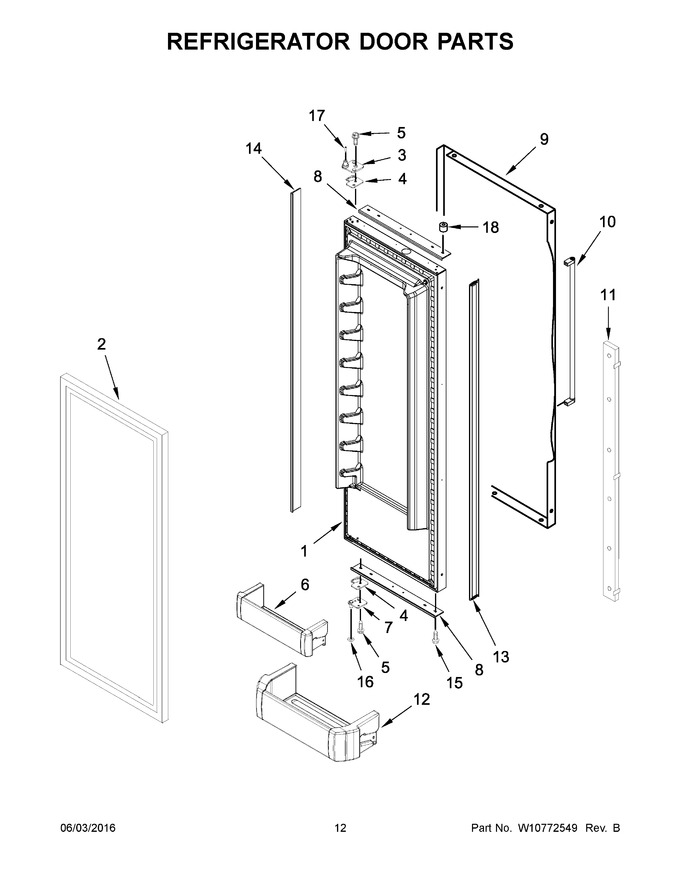

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10782300 | Door, Refrigerator (includes Item 2) (left Hand) (Replaces: W10707739) |
|
$ 1,013.28 | |||||
| 2 | W10871887 | Gasket, Door (grey) (Replaces: W10629728) |
|
$ 289.24 | |||||
| 3 | W11673500 | Assembly, Top Hinge (Replaces: 2320642) |
|
Immediately | $ 117.33 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 6 | W10707724 | Bin, Door (shallow) |
|
- | |||||
| 7 | W10273369 | Assembly, Bottom Hinge (left Hand) |
|
$ 37.09 | |||||
| 8 | W10535347 | Spacer Door (top And Bottom) |
|
$ 148.76 | |||||
| 9 | W11797628 | Skin, Door (stainless) (Replaces: W10541584) |
|
- | |||||
| 10 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 195.04 | |||||
| 11 | W10732107 | Assembly, Mullion |
|
$ 264.77 | |||||
| 12 | W10707726 | Bin, Door (gallon) |
|
$ 71.33 | |||||
| 13 | W10600736 | Spacer, Door Edge (handle Side) |
|
$ 273.29 | |||||
| 14 | W10600734 | Spacer, Door Edge (hinge Side) |
|
$ 267.44 | |||||
| 15 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 10.28 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 17 | W11500952 | Bushing, Door Stop (Replaces: 2316760) |
|
Immediately | $ 31.27 | ||||
| 18 | 2005433 | Spacer, Door Skin (top) |
|
$ 21.00 | |||||
| 1A | W10782301 | Door, Refrigerator (includes Item 2) (right Hand) (Replaces: W10707741) |
|
$ 1,012.91 | |||||
| 7A | W10273367 | Assembly, Bottom Hinge (right Hand) |
|
$ 37.14 |
