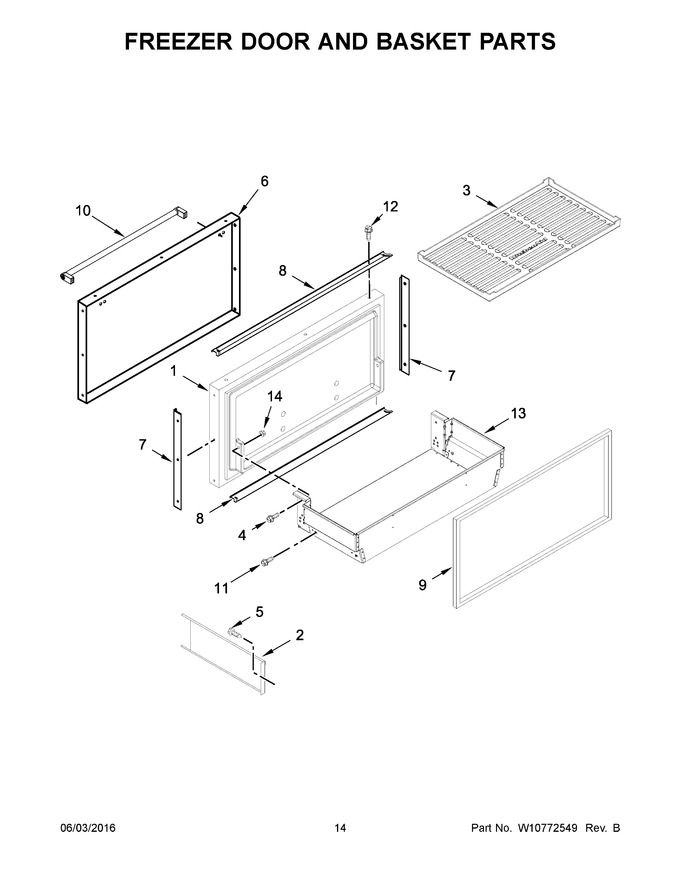

08 - Freezer Door And Basket Parts


09 - Top Grille And Unit Cover Parts


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Ice Maker Parts


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10782351		Door, Freezer (includes Item 9)   (Replaces: W10707735)				$ 831.78
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665412		Mat, Basket		Appelez-nous	-
4	W10761334		Screw				$ 11.70
5	WP488234		Screw   (Replaces: W10135792)				$ 6.37
6	W11797626		Skin, Door (stainless)   (Replaces: W10541579)		Appelez-nous	-
7	W10609690		Spacer, Door Edge (side)		Appelez-nous	-
8	W10609689		Spacer, Door Edge (top And Bottom)				$ 133.28
9	W11625085		Gasket, Door (grey)   (Replaces: W10609687)			Immediately	$ 287.44
10	W10783283		Handle, Door (stainless)   (Replaces: W10541591)				$ 194.08
11	W10109030		Screw				$ 13.82
12	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
13	W10774207		Assembly, Freezer Basket		Appelez-nous	-
14	W10771111		Nut			Immediately	$ 18.23
