SELECT A DIAGRAM
New Model Search:

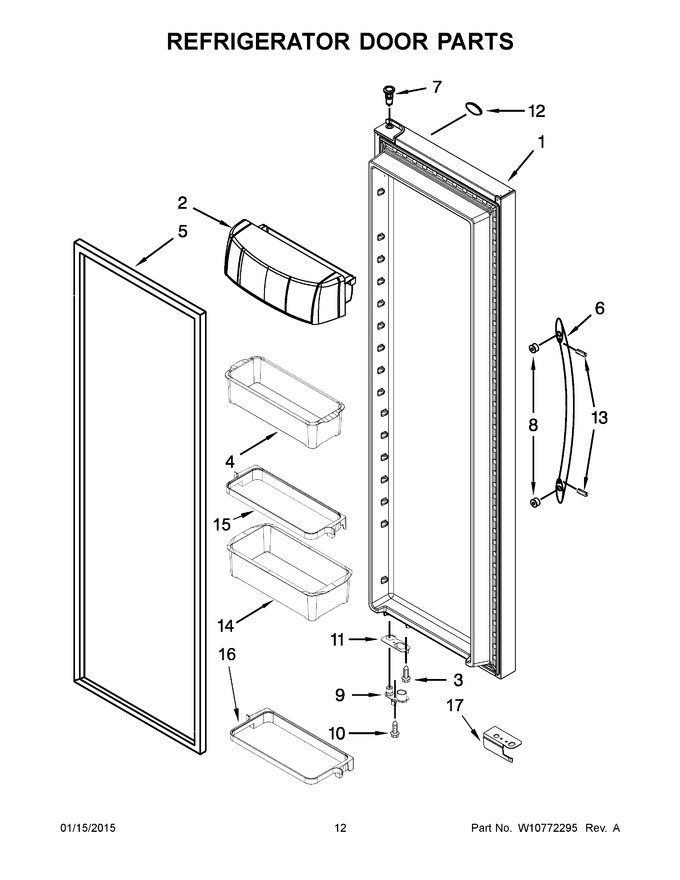

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10637819 | Refrigerator Door (includes Item 5) (stainless) (Replaces: W10637819) |
|
$ 1,201.09 | |||||
| 2 | WPW10324760 | Assembly, Utility Compartment (Replaces: W10324760) |
|
$ 77.04 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | WPW10316461 | Door Bin, Shallow (Replaces: W10316461) |
|
$ 75.63 | |||||
| 5 | W10355588 | Door Gasket, Magnetic (grey) (Replaces: W10249918) |
|
$ 287.29 | |||||
| 6 | WPW10314517K | Handle (stainless) (Replaces: W10314517) |
|
$ 219.03 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 9 | WPW10257203 | Door Closer, Upper Cam (grey) (Replaces: W10257203) |
|
$ 11.66 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10367462) |
|
$ 72.22 | |||||
| 12 | WPW10243391 | Nameplate (grey) (Replaces: W10243391) |
|
$ 52.48 | |||||
| 13 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 4.54 | ||||
| 14 | WPW10316457 | Bin, Door Gallon (Replaces: W10316457) |
|
Immediately | $ 88.82 | ||||
| 15 | WPW10494333 | Frame, Shallow Door Bin (Replaces: W10494333) |
|
$ 240.53 | |||||
| 16 | WPW10494334 | Frame, Gallon Door Bin (Replaces: W10494334) |
|
$ 240.27 | |||||
| 17 | W11661847 | Cover, Door Stop (grey) (Replaces: W10257218) |
|
Immediately | $ 28.54 |
