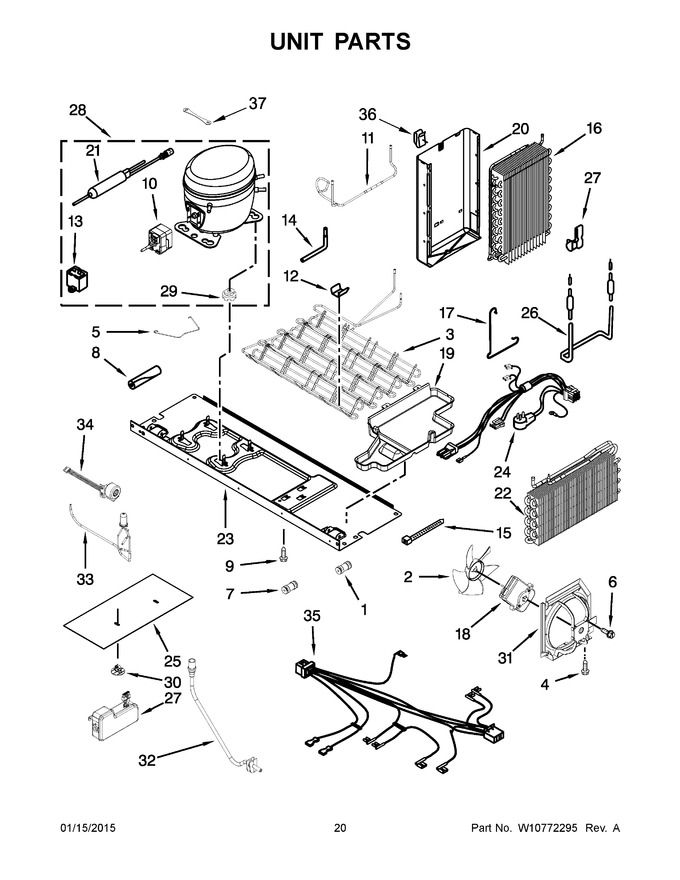

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10277958		Connector, Water   (Replaces: W10277958)			Immediately	$ 62.61
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 56.52
3	W11708426		Assembly, Condenser   (Replaces: W10240365)				$ 244.07
4	WP489399		Screw   (Replaces: W10142231)				$ 6.57
5	W10204187		Strap, Bale		Appelez-nous	-
6	WPW10171469		Screw   (Replaces: W10171469)			Immediately	$ 10.45
7	WPW10271543		Connector, Water Tube   (Replaces: W10271543)			Immediately	$ 31.89
8	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 19.19
9	3400524		Bolt   (Replaces: W10142287)				$ 11.95
10	WPW10197428		Device, Combination Start (start Relay & Overload)   (Replaces: W10197428)			Immediately	$ 80.29
11	WPW10223328		Tube, Suction   (Replaces: W10223328)				$ 83.57
12	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 17.44
13	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 89.54
14	2325479		Tube, Process		Appelez-nous	-
15	WP2205813		Tie, Wire   (Replaces: 2205813)				$ 7.30
16	WPW10239732		Evaporator   (Replaces: W10239732)			Immediately	$ 317.39
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	WP2188874		Motor, Condenser   (Replaces: W10508362)			Immediately	$ 111.76
19	W10714793		Tray, Evaporator				$ 147.90
20	W10376319		Shield, Heat   (Replaces: W10343824)				$ 104.38
21	WPW10143759		Drier   (Replaces: W10286069)			Immediately	$ 27.70
22	WPW10643261		Evaporator, Dual-rc   (Replaces: W10643261)			Immediately	$ 309.10
23	W10277704		Basepan				$ 169.00
24	WPW10261232		Cord, Power   (Replaces: W10261232)				$ 60.21
25	W10284726		Cover, Unit Bottom				$ 115.91
26	W10857624		Heater, Defrost   (Replaces: W10495968)				$ 127.58
27	W11038857		Supply, Led Power   (Replaces: W10356137)				$ 327.52
28	W10309988		Compressor (also Order 876765 Tube Kit)   (Replaces: W10253005)			Immediately	$ 528.56
29	WPW10169124		Grommet   (Replaces: 10835903)				$ 6.80
30	W10296661		Clip, Bottom Cover				$ 16.00
31	WPW10251467		Baffle, Air   (Replaces: W10251467)				$ 76.32
32	W11409190		Tube, Drain   (Replaces: W10223368)			Immediately	$ 58.81
33	W11590197		Assembly, Valve Body   (Replaces: W10331270)			Immediately	$ 102.70
34	WPW10364560		Coil, 3 Way Valve   (Replaces: W10364560)				$ 203.29
35	W11676780		Assembly, Unit Wire   (Replaces: W10670174)				$ 69.94
36	2155547		Clip, Heat Shield		Appelez-nous	-
37	W10236396		Strap, Compressor			Immediately	$ 18.73
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge 5.3 Oz. (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
