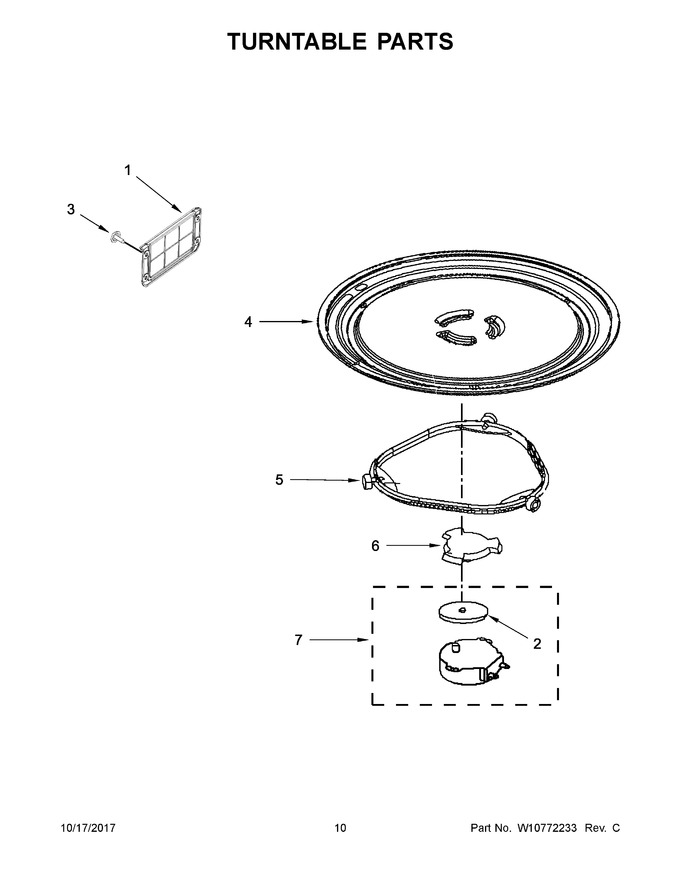

06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10313272 | Cover, Waveguide |
|
Immediately | $ 32.42 | ||||
| 2 | 8184109 | Seal, Waterproof |
|
$ 6.57 | |||||
| 3 | W11319886 | Rivets (Replaces: W10138801) |
|
$ 20.23 | |||||
| 4 | W11367904 | Turntable (Replaces: W10337247) |
|
Immediately | $ 73.40 | ||||
| 5 | W11252182 | Ring, Turntable (with Rollers) (Replaces: W10654906) |
|
Immediately | $ 35.60 | ||||
| 6 | W10337248 | Driver, Turntable |
|
Immediately | $ 7.05 | ||||
| 7 | WPW10466420 | Motor, Turntable (Replaces: W10466420) |
|
Immediately | $ 50.93 |
