01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts

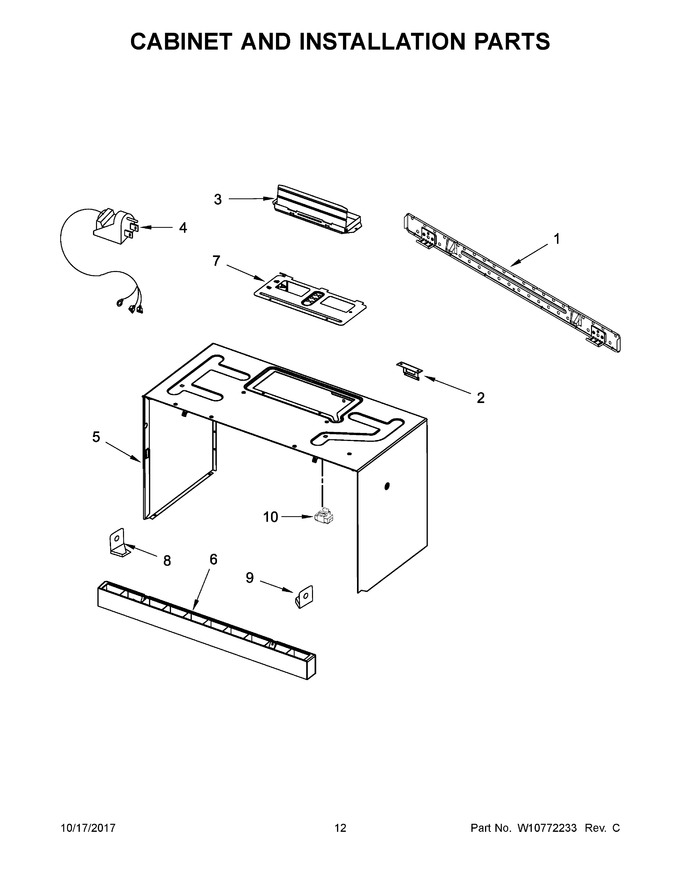

07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 22.22
2	8206385		Support, Wire Clip				$ 33.48
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 76.13
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 19.40
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 262.73
6	W10245217		Grille, Vent (white)				$ 95.38
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10830163		Vent Grid Holder, Left Side (black)   (Replaces: W10703285)				$ 12.79
9	W10810989		Vent Grid Holder, Right Side (black)   (Replaces: W10703283)				$ 9.20
10	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
5A	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 267.76
6A	W10245218		Grille, Vent (black)				$ 94.46
6B	W10245216		Grille, Vent (stainless)				$ 130.20
8A	W11026306		Vent Grid Holder, Left Side (stainless)   (Replaces: W10703284)			Immediately	$ 6.80
9A	W10703282		Vent Grid Holder, Right Side (stainless)				$ 9.90
NI	W10539841		Miscellaneous Parts, Harness, Hood Lamp And Turntable Motor				$ 18.88
NI	W10539842		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer				$ 15.03
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 22.57
NI	W10539846		Miscellaneous Parts, Harness, Message Wire		Appelez-nous	-
NI	W10540464		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 12.02
NI	W10821385		Miscellaneous Parts, Hardware, Installation   (Replaces: W10728970)			Immediately	$ 93.35
NI	W10190018		Miscellaneous Parts, Template, Upper (english & French)			Immediately	$ 6.80
