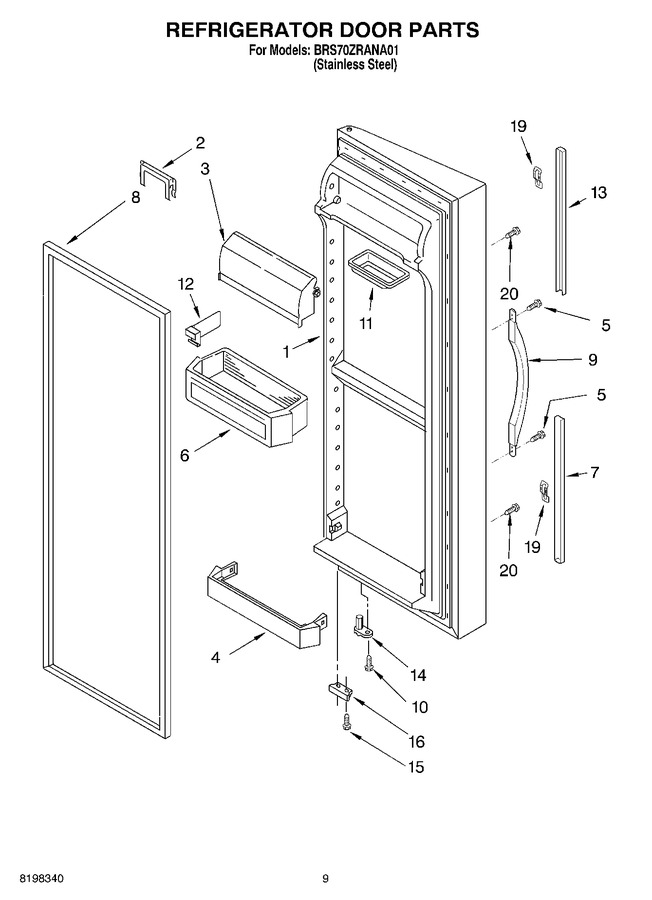

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207026SB		Refrigerator Door (includes Item 8)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 80.48
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 70.75
5	WP489491		Screw   (Replaces: 489491)				$ 6.57
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 40.46
7	2217186B		Extension, Bottom (black)		Appelez-nous	-
8	2159083		Door Gasket Magnetic   (Replaces: 2221313)				$ 299.48
9	WP2217185B		Handle, Center (black)   (Replaces: 2217185B)				$ 171.13
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
11	2165792		Butter, Dish		Appelez-nous	-
12	2195496		Divider, Bin		Appelez-nous	-
13	2217187B		Extension, Top (black)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
15	WP489483		Screw   (Replaces: 489420)				$ 10.27
16	2200082B		Bracket, Door Stop (black)				$ 42.44
19	WP2195327		Clip   (Replaces: 2195327)				$ 6.99
20	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
