SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

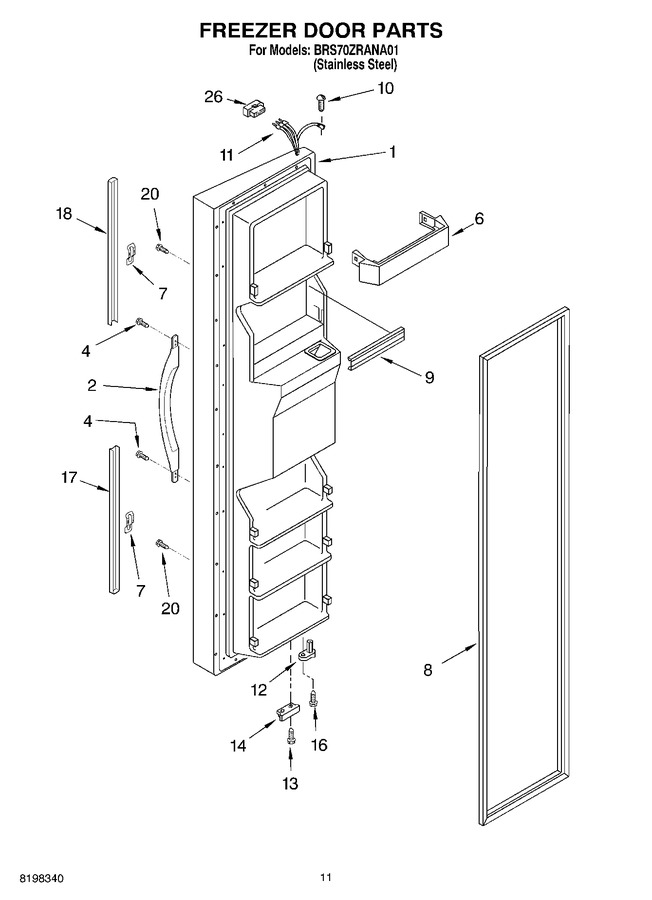

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2220799SB		Freezer Door (includes Item 8 And Dispenser Front Parts)		Appelez-nous	-
2	WP2217185B		Handle, Center (black)   (Replaces: 2217185B)				$ 190.14
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	2204072		Trivet, Shelf (4)		Appelez-nous	-
7	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
8	2159082		Door Gasket, Magnetic   (Replaces: 2221314)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2187271		Wire Assembly		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2200082B		Bracket, Door Stop (black)				$ 42.44
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
17	2217186B		Extension, Bottom (black)		Appelez-nous	-
18	2217187B		Extension, Top (black)		Appelez-nous	-
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
26	WP2154473		Connector   (Replaces: 2154473)				$ 24.83

    View Diagram in Separate Window       Print Part List
