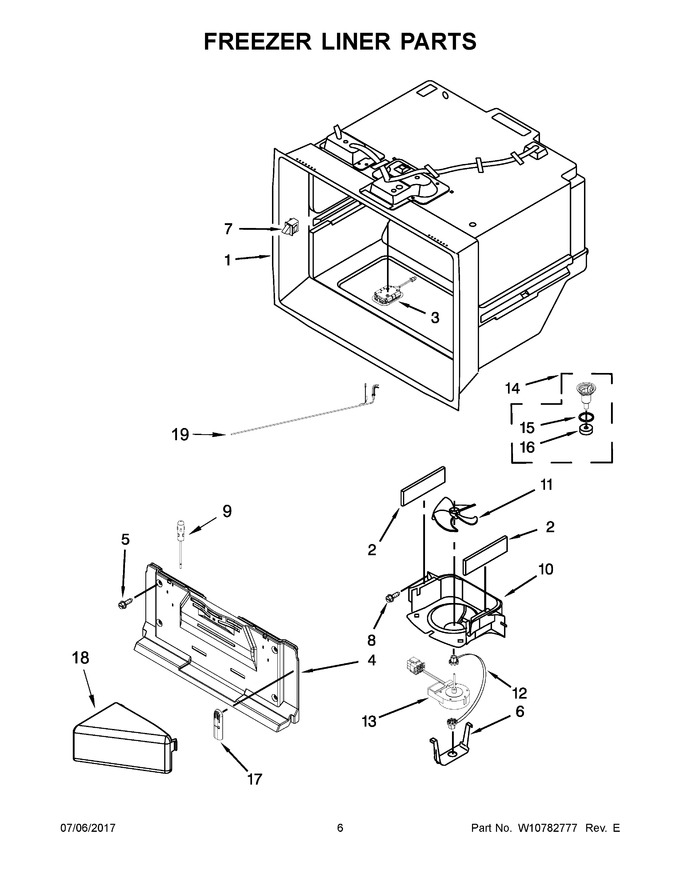

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W11769879		Gasket   (Replaces: W10459031)			Immediately	$ 22.26
3	W11683243		Assembly, Led Light Module   (Replaces: W10843353)			Immediately	$ 242.92
4	W11690163		Assembly, Evaporator Cover (freezer)   (Replaces: W10736933)				$ 197.17
5	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
6	W11712696		Clip, Fan Motor   (Replaces: 12956601)			Immediately	$ 11.02
7	W11384469		Switch, Light   (Replaces: C3680310V)			Immediately	$ 35.18
8	WP98165		Screw   (Replaces: 12990504)				$ 7.71
9	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 30.24
10	WPW10363507		Shroud, Evaporator Fan   (Replaces: W10363507)				$ 77.72
11	WP67006337		Blade, Fan   (Replaces: 12986101)			Immediately	$ 95.05
12	W11676465		Grommet, Fan Motor   (Replaces: 12951101)			Immediately	$ 14.00
13	W11249952		Motor, Evaporator (includes Harness Thermistor, And Defrost Thermostat)   (Replaces: W10701003)			Immediately	$ 146.30
14	W10503218		Assembly, Drain Funnel			Immediately	$ 16.78
15	WPM0500703		Seal   (Replaces: M0500703)				$ 10.32
16	WPB8381501		Gasket, Drain   (Replaces: B8381501)				$ 7.00
17	W10698555		Cover, Thermistor				$ 99.71
18	W10734891		Diffuser, Air		Appelez-nous	-
19	W11238340		Fill Tube & Heater Assembly   (Replaces: W10701614)				$ 116.06
