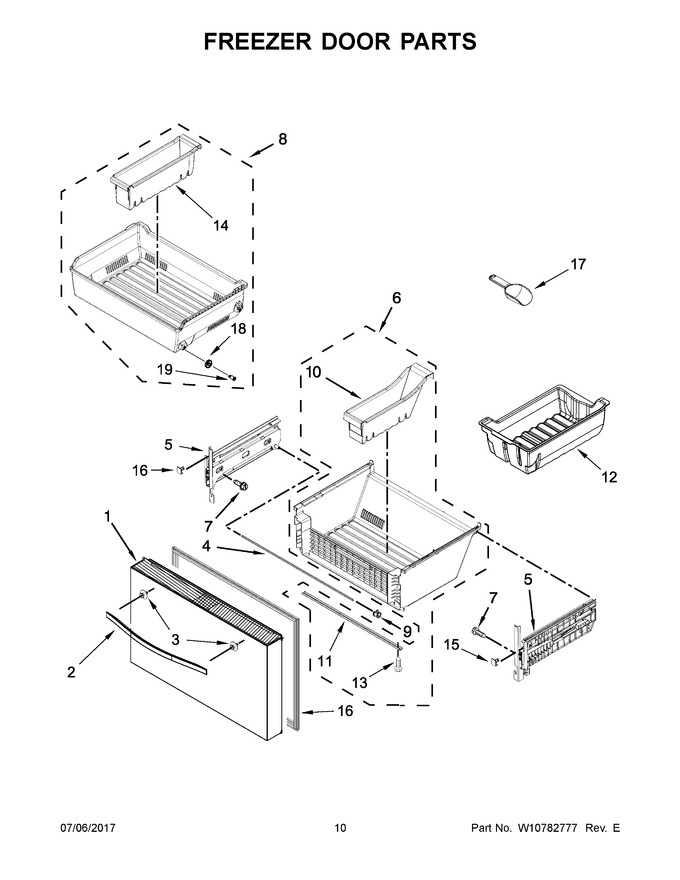

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10815698 | Door, Freezer (stainless) (Replaces: W10634627) |
|
$ 959.21 | |||||
| 2 | W10883202 | Handle, Door (stainless) (Replaces: W10806905) |
|
$ 93.28 | |||||
| 3 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 4 | WPW10503522 | Shaft (Replaces: W10503522) |
|
$ 88.29 | |||||
| 5 | W11668671 | Assembly, Bracket (left Hand) (Replaces: W10795770) |
|
Immediately | $ 476.13 | ||||
| 6 | W10680631 | Bin, Lower |
|
$ 125.25 | |||||
| 7 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 8 | W10724458 | Bin, Upper |
|
- | |||||
| 9 | W10852685 | Clip, Shaft (Replaces: W10709748) |
|
$ 10.25 | |||||
| 10 | W10507444 | Divider, Lower |
|
$ 55.93 | |||||
| 11 | W11677723 | Support, Pan (Replaces: W10469177) |
|
Immediately | $ 139.59 | ||||
| 12 | W10709259 | Bin, Ice |
|
$ 116.06 | |||||
| 13 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 7.50 | ||||
| 14 | WPW10485654 | Divider, Upper (Replaces: W10485654) |
|
$ 60.13 | |||||
| 15 | WPW10485096 | Stop, Pan (left Hand) (Replaces: W10485096) |
|
$ 75.29 | |||||
| 16 | W10407216 | Gasket, Door (grey) (Replaces: W10248749) |
|
Immediately | $ 255.75 | ||||
| 17 | W10182881 | Scoop, Ice Pan |
|
$ 20.12 | |||||
| 18 | W11578839 | Roller, Pan (Replaces: W10248555) |
|
$ 13.46 | |||||
| 19 | W11573594 | Axle, Roller (Replaces: W10643690) |
|
$ 17.23 | |||||
| 15A | WPW10485089 | Stop, Pan (right Hand) (Replaces: W10485089) |
|
$ 78.04 | |||||
| 5A | W11668671 | Assembly, Bracket (right Hand) (Replaces: W10795768) |
|
Immediately | $ 476.13 |
