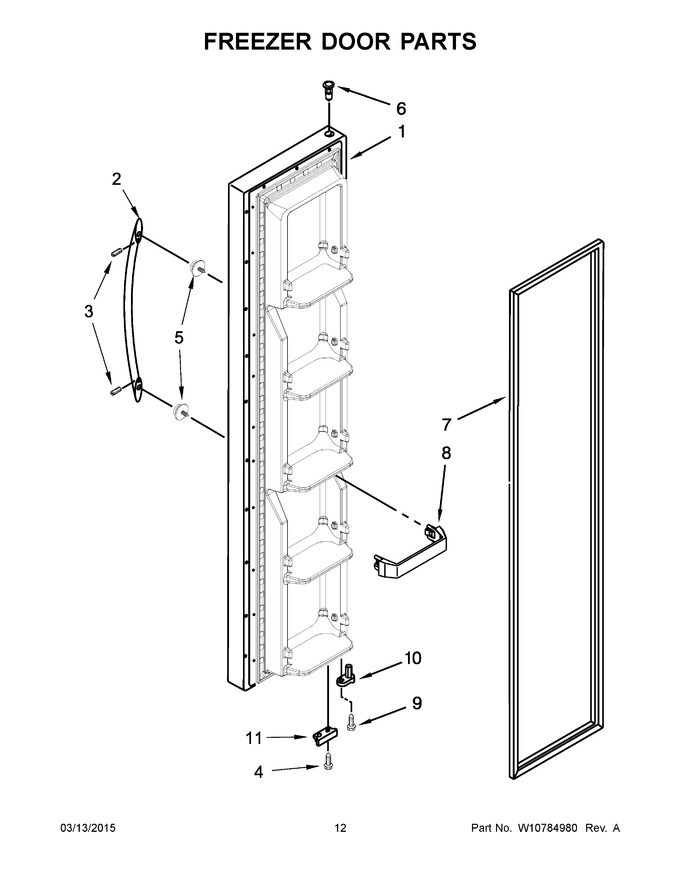

07 - Freezer Door Parts


08 - Air Flow Parts


09 - Control Box Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10668580		Freezer Door (includes Item #7) (white)		Appelez-nous	-
2	WPW10268056		Handle (white)   (Replaces: W10268056)				$ 156.70
3	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 16.59
4	WP489483		Screw   (Replaces: 489420)				$ 10.27
5	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
6	WP2182181		Thimble   (Replaces: 2182181)				$ 7.34
7	2159074		Door Gasket, Magnetic (service) (beige)   (Replaces: 2309532)				$ 293.13
8	WP2309718		Trivet   (Replaces: 2309718)				$ 55.34
9	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
10	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 6.48
11	2306940		Bracket, Door Stop (silver)				$ 91.74
1A	LW10668578		Freezer Door (includes Item #7) (sparkle Steel)   (Replaces: W10668578)		Appelez-nous	-
2A	WPW10670421		Handle (stainless)   (Replaces: W10274730)				$ 228.74
7A	W10136735		Door Gasket, Magnetic (service) (grey)   (Replaces: 2327164)				$ 283.96
