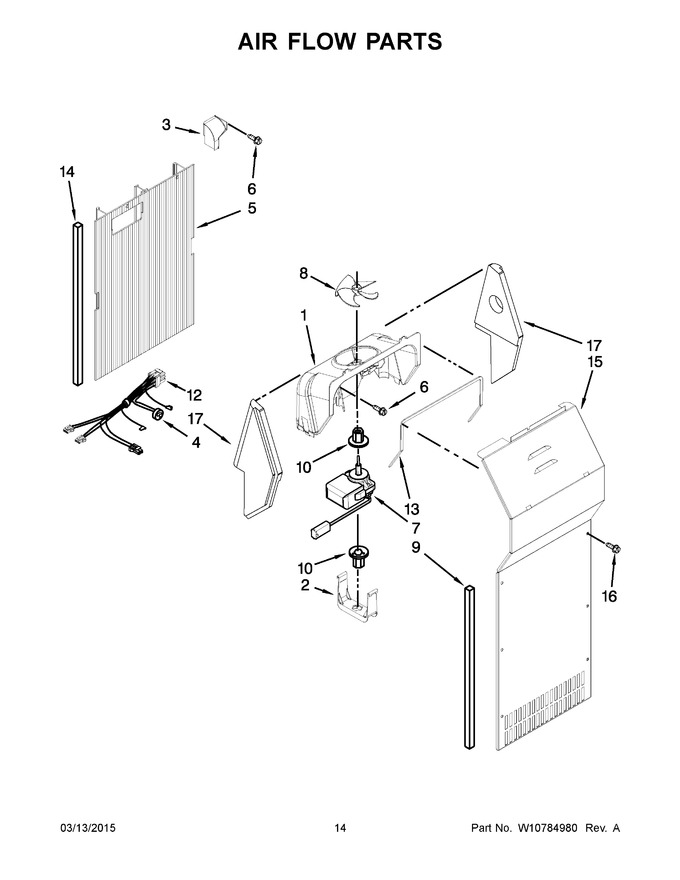

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Scroll, Fan   (Replaces: 2182120)			Immediately	$ 105.81
2	2155590		Retainer, Fan Motor				$ 5.83
3	W10803597		Scoop, Air   (Replaces: 2161229)				$ 77.51
4	W10129958		Bi-metal, Defrost		Appelez-nous	-
5	W11755719		Duct, Freezer Air   (Replaces: 2203594)		Appelez-nous	-
6	WP489478		Screw   (Replaces: 489478)				$ 7.36
7	WP2321275		Motor, Fan   (Replaces: 2321275)				$ 286.94
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
9	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 78.25
10	WP2176759		Grommet, Motor   (Replaces: 2176759)				$ 7.34
12	W10242395		Assembly, Evaporator Fan Wire		Appelez-nous	-
13	WP2155789		Gasket   (Replaces: 2155789)				$ 7.36
14	4388500		Gasket   (Replaces: 2203876)				$ 85.42
15	WPW10463013		Cover, Evaporator   (Replaces: W10463013)				$ 296.17
16	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 6.80
17	4388358		Support, Fan Scroll (left Hand)   (Replaces: 2203596)				$ 29.45
17A	4388358		Support, Fan Scroll (right Hand)   (Replaces: 2203595)				$ 29.45
