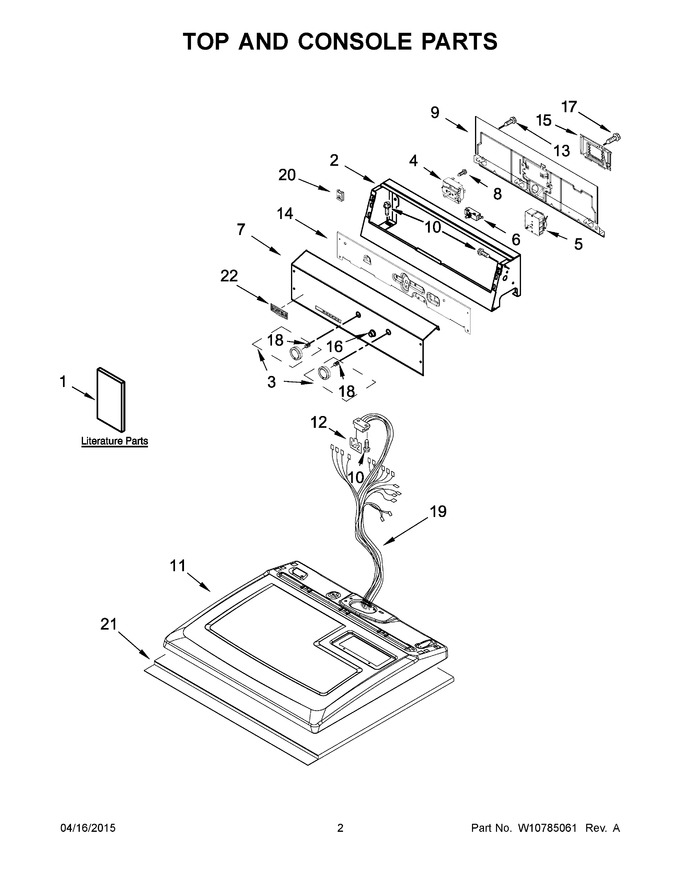

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10755020		Installation Instructions		Appelez-nous	-
2	W11124005		Console   (Replaces: W10461095)				$ 214.58
3	W10771940		Assembly, Control Knob (grey)				$ 48.06
4	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 164.31
5	WP8578352		Switch, Rotary Temperature   (Replaces: 8578352)				$ 214.07
6	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
7	W10763072		Fascia		Appelez-nous	-
8	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
9	285909		Panel, Rear Console   (Replaces: 8317305)				$ 235.28
10	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
11	W10772880		Top (white)				$ 157.51
12	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 296.94
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
14	W10738304		Bracket, Back		Appelez-nous	-
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 121.29
16	W10755535		Push Button, Start				$ 68.71
17	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
19	W10762533		Harness, Main		Appelez-nous	-
20	WPW10131123		Nut, "u   (Replaces: W10131123)				$ 7.29
21	W10123956		Panel, Dampening		Appelez-nous	-
22	WPW10612926		Badge (grey)   (Replaces: W10612926)			Immediately	$ 35.64
1A	W10755024		Guide, Use And Care		Appelez-nous	-
1B	W10758022		Wiring Diagram		Appelez-nous	-
1C	W10771926		Quick Start Guide		Appelez-nous	-
