01 - Cover Sheet
02 - Top And Console Parts

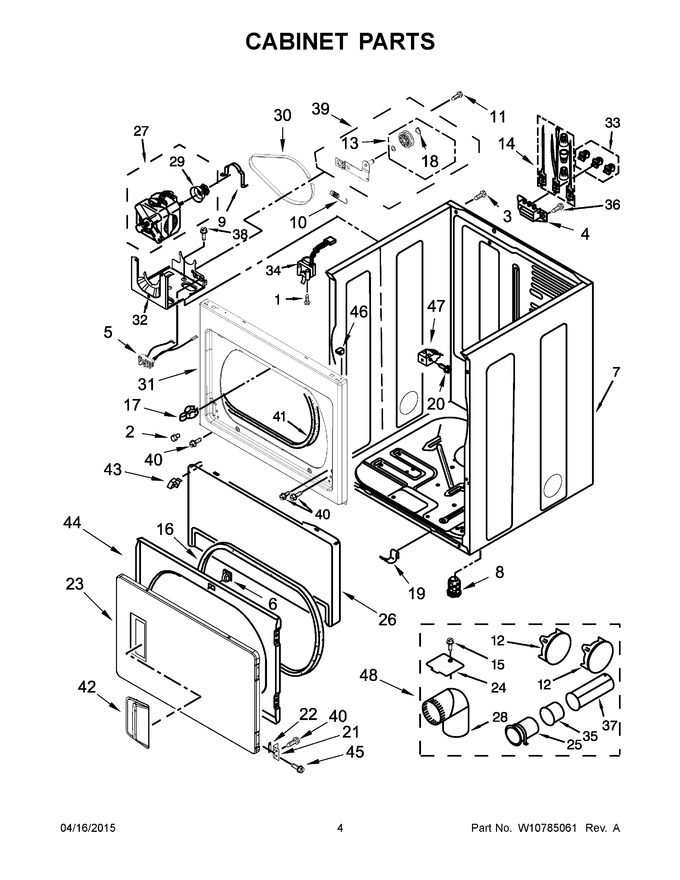

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 2 | 693152 | Bumper |
|
$ 10.36 | |||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 7.38 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10724631) |
|
Immediately | $ 24.21 | ||||
| 6 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 396.15 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | WPW10404617 | Plug, Multivent (white) (Replaces: 49252) |
|
$ 68.02 | |||||
| 13 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 29.26 | ||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 15 | WPW10139210 | Screw (Replaces: 3390646) |
|
$ 7.23 | |||||
| 16 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 123.42 | |||||
| 17 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 18 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.33 | |||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 6.80 | ||||
| 21 | WPW10279703 | Hinge, Assembly (silver) (Replaces: W10279703) |
|
$ 68.25 | |||||
| 22 | W10191265 | Plug, Hinge Hole (white) |
|
$ 41.84 | |||||
| 23 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 245.11 | |||||
| 24 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.47 | |||||
| 25 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 86.36 | |||||
| 26 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 225.23 | |||||
| 27 | WPW10508324 | Assembly, Motor (Replaces: W10396038) |
|
Immediately | $ 308.62 | ||||
| 28 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 25.34 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: W10460106) |
|
Immediately | $ 11.49 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 40.19 | ||||
| 31 | W10242810 | Panel, Front (white) (Replaces: W10192882) |
|
$ 348.00 | |||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 85.36 | ||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 34 | WP3406107 | Switch, Door (Replaces: 3406107) |
|
Immediately | $ 28.08 | ||||
| 35 | WPW10331278 | Pipe, Exhaust (short) (Replaces: 8563750) |
|
$ 74.61 | |||||
| 36 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 37 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 83.92 | |||||
| 38 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 39 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 40 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 41 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 42 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 71.59 | ||||
| 43 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 44 | WP8066045 | Door, Inner (Replaces: 8066045) |
|
$ 183.78 | |||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 46 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 7.28 | ||||
| 47 | 3391846 | Clip, Front Panel |
|
$ 19.99 | |||||
| 48 | 681615 | Screw (Replaces: 3391915) |
|
$ 13.11 | |||||
| 49 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.75 |
