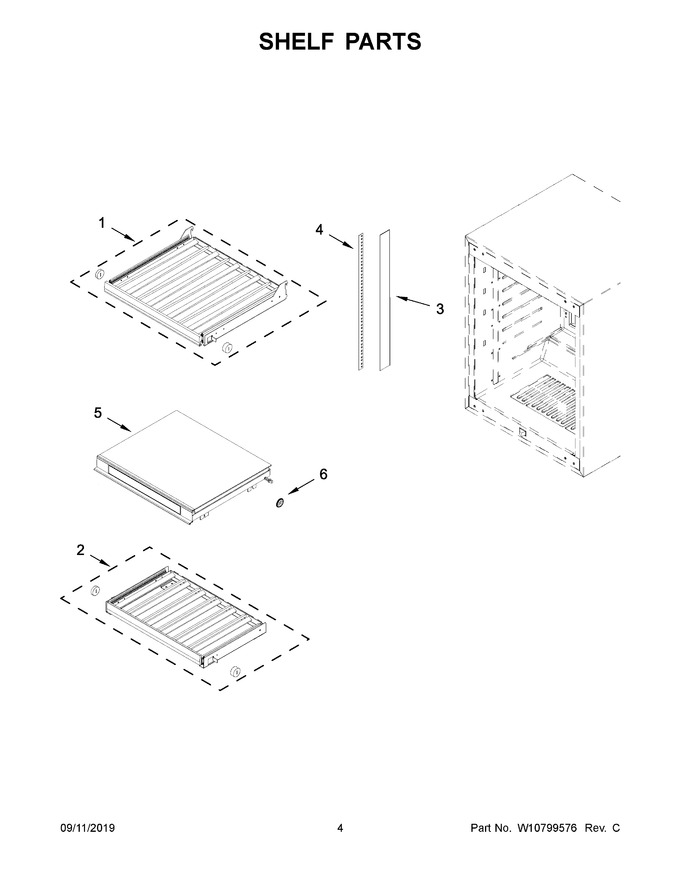

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10802017 | Wine Rack Assembly, Top |
|
Immediately | $ 354.52 | ||||
| 2 | W10804445 | Wine Rack Assembly, Lower |
|
$ 357.24 | |||||
| 3 | W11400014 | Led Cover |
|
- | |||||
| 4 | W11400015 | Led Light |
|
Immediately | $ 89.01 | ||||
| 5 | W11250119 | Control Panel Assembly (Replaces: W10876289) |
|
$ 413.41 | |||||
| 6 | W10621514 | Liner Bushing |
|
$ 28.54 |
