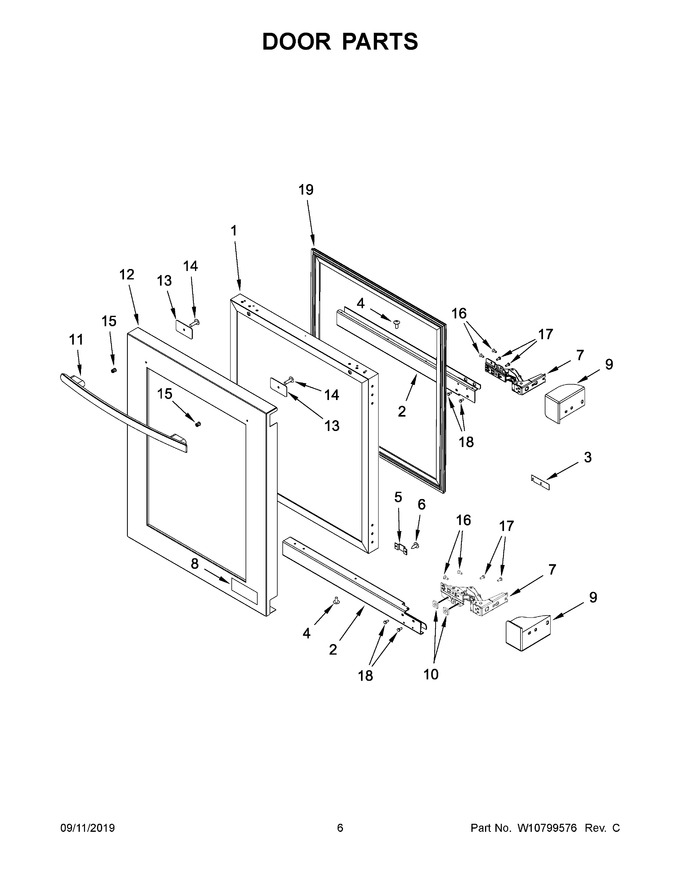

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11432261		Door Assembly (right Hinge)   (Replaces: W10804440)				$ 765.14
2	W10800045		Latch Hinge Fix Plate Top Right & Bottom Left		Appelez-nous	-
3	W10780350		Spacer, Bottom Hinge		Appelez-nous	-
4	W10319187		Screw				$ 66.16
5	W10800047		Plate Mount Switch		Appelez-nous	-
6	W10319184		Screw		Appelez-nous	-
7	W10622809		Assembly, Hinge Top Right & Bottom Left				$ 256.77
8	WPW10214168		Name Plate   (Replaces: W10292471)				$ 77.36
9	W10622811		Cover, Hinge Top Right & Bottom Left				$ 113.43
10	W10780347		Spacer, Mounting Hinge		Appelez-nous	-
11	W10622019		Handle			Immediately	$ 324.81
12	W10800032		Stainless Wrap (right Hinge)				$ 372.83
13	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 15.65
14	W10859467		Screw, Handle   (Replaces: W10204866)				$ 72.21
15	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 17.40
16	W10780349		Screw				$ 46.80
17	W10319189		Screw				$ 64.03
18	W10622817		Screw				$ 23.10
19	WPW10624183		Gasket, Door   (Replaces: W10624183)				$ 244.37
12A	W10800033		Stainless Wrap (left Hinge)				$ 372.83
1A	W11432261		Door Assembly (left Hinge)   (Replaces: W10804441)				$ 765.14
2A	W10800046		Latch Hinge Fix Plate Top Left & Bottom Right		Appelez-nous	-
7A	W10622810		Assembly, Hinge Top Left & Bottom Right				$ 258.35
9A	W10622812		Cover, Hinge Top Left & Bottom Right				$ 113.43

    View Diagram in Separate Window       Print Part List
