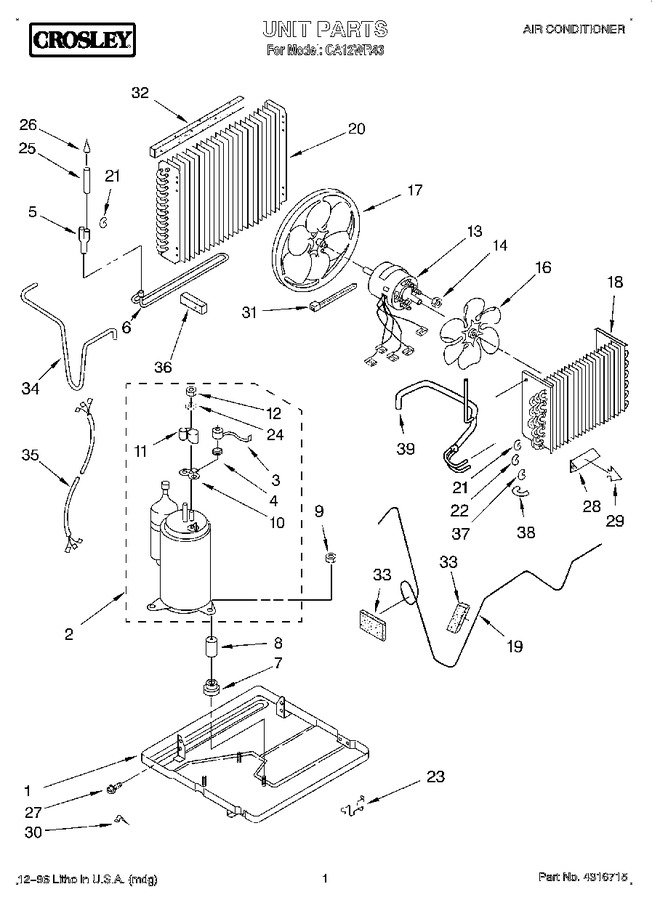

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 950019 | Base |
|
- | |||||
| 2 | 1163573 | Compressor |
|
- | |||||
| 3 | 1155700 | Overload |
|
- | |||||
| 4 | 950032 | Spring, Overload |
|
- | |||||
| 5 | 1162071 | Tube, Flow Divider |
|
- | |||||
| 6 | 1168421 | Tube, Wet Loop |
|
- | |||||
| 7 | WP950021 | Grommet, Compressor Mounting (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 8 | 950020 | Sleeve, Compressor Mounting (3) |
|
- | |||||
| 9 | 858121 | Nut, Lock (3) |
|
- | |||||
| 10 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 11 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 12 | 950037 | Nut |
|
- | |||||
| 13 | 947852 | Motor, Fan |
|
- | |||||
| 14 | WP488130 | Nut, Hex Keps 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 16 | 1160946 | Blade, Fan (evaporator) |
|
- | |||||
| 17 | 1161594 | Blade, Fan (condenser) |
|
- | |||||
| 18 | 1156743 | Evaporator |
|
- | |||||
| 19 | 1156455 | Tube, Restrictor (2) |
|
- | |||||
| 20 | 1164709 | Condenser |
|
- | |||||
| 21 | 708532 | Bend, Return Condenser (13) Evaporator (2) |
|
- | |||||
| 22 | 708531 | Bend, Return Evaporator (12) |
|
- | |||||
| 23 | 949634 | Clip, Mtg. (2) (base To Front) |
|
- | |||||
| 24 | WP950027 | Washer (Replaces: 950027) |
|
$ 5.20 | |||||
| 25 | 1155460 | Tube, Outlet (includes Illus 26) |
|
- | |||||
| 26 | 49599 | Strainer, Tube |
|
- | |||||
| 27 | 488481 | Screw (repair) No.10 X 3/8a |
|
- | |||||
| 27 | WP489069 | Screw, Sm No.8 X 1/2a (7) (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 28 | 996773 | Anticipator, Temperature |
|
- | |||||
| 29 | 475577 | Clip, Temperature Anticipator |
|
- | |||||
| 30 | 642684 | Clamp, Tube |
|
- | |||||
| 31 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 32 | 948090 | Seal, Condenser Top |
|
- | |||||
| 33 | 1162616 | Seal, Anti-rub |
|
- | |||||
| 34 | 1165484 | Tube, Discharge |
|
- | |||||
| 35 | 484136 | Harness, Wiring |
|
- | |||||
| 36 | WP854334 | Seal, Condenser Bottom (2) (Replaces: 859600) |
|
$ 12.55 | |||||
| 37 | 1158407 | Bend, Return (2) |
|
- | |||||
| 38 | 1156533 | Bend, Return (2) |
|
- | |||||
| 39 | 1163983 | Tube, Suction |
|
- | |||||
| LIT1165234 | Wiring Diagram |
|
- | ||||||
| LIT1169192 | Owners Manual |
|
- | ||||||
| LIT1169631 | Sheet, Tech |
|
- |
