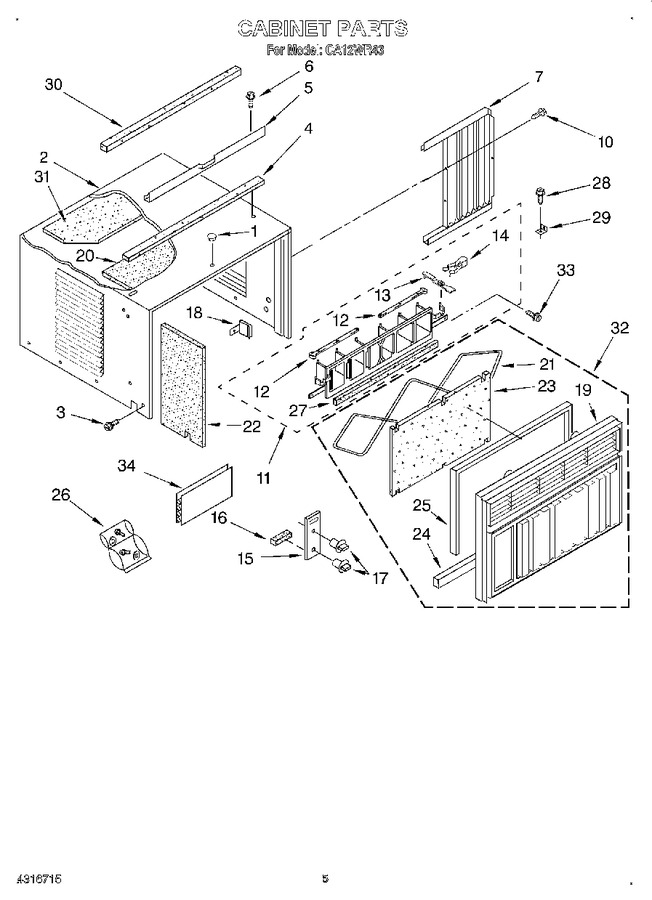

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157126		Plug, Hole		Appelez-nous	-
2	1163513		Cabinet		Appelez-nous	-
3	WP489069		Screw, 8-32 X 3/8 (8)   (Replaces: 1157158)			Immediately	$ 7.56
4	856989		Strip, Seal		Appelez-nous	-
5	1169001		Channel, Top Mounting		Appelez-nous	-
6	WP308685		Screw, No.10 X 1/2 (3)   (Replaces: 488720)			Immediately	$ 7.08
7	1164155		Housing, Curtain (right Side)		Appelez-nous	-
7	1164154		Housing, Curtain (left Side)		Appelez-nous	-
10	1161561		Screw		Appelez-nous	-
11	1159980		Louver, Vertical		Appelez-nous	-
12	855158		Link, Vertical Louver (2)		Appelez-nous	-
13	1161636		Handle, Vertical Louver (2)		Appelez-nous	-
14	644006		Spring, Detent (2)		Appelez-nous	-
15	1167791		Plate, Escutcheon		Appelez-nous	-
16	470036		Spacer, Escutcheon Plate (2)		Appelez-nous	-
17	1168377		Knob, Control (2) (brown W/ White Indicator)		Appelez-nous	-
18	1158294		Clip		Appelez-nous	-
19	1159826		Frame, Front		Appelez-nous	-
20	1163429		Insul. Cab. Top.		Appelez-nous	-
21	646963		Retainer, Filter		Appelez-nous	-
22	1163430		Insulation, Cab. (right, Side)		Appelez-nous	-
22	1163431		Insulation, Cab. (left, Side)		Appelez-nous	-
23	855246		Filter		Appelez-nous	-
24	852923		Seal, Cabinet Front		Appelez-nous	-
25	645883		Seal, Strip (top & Sides)		Appelez-nous	-
26	476180		Bag, Accessory		Appelez-nous	-
27	855238		Seal, Louver		Appelez-nous	-
28	488255		Screw, Wood No.8 X 3/4 (1)		Appelez-nous	-
29	644228		Bracket, Window Lock		Appelez-nous	-
30	469877		Seal, Meeting Rail		Appelez-nous	-
31	1158501		Insulation		Appelez-nous	-
32	1159825		Front, Complete		Appelez-nous	-
33	1159222		Screw		Appelez-nous	-
34	212643		Sealer, Gum Type   (Replaces: 470168)			Immediately	$ 86.78
