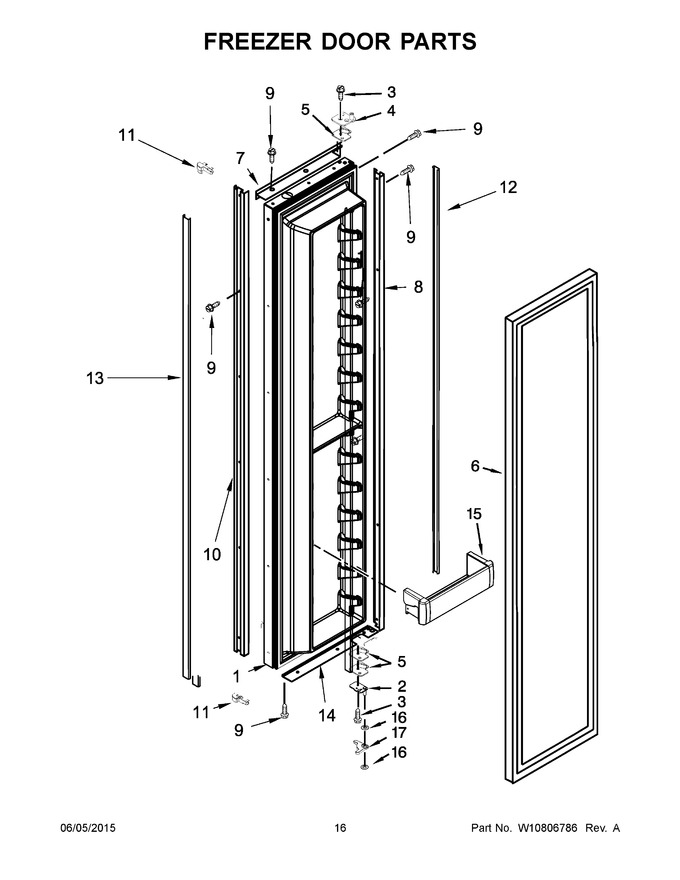

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11811592		Door, Freezer   (Replaces: W10761958)				$ 537.08
2	2252294		Assembly, Bottom Hinge		Appelez-nous	-
3	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
4	W10484480		Assembly, Top Hinge				$ 57.64
5	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
6	W11625082		Gasket, Door (grey)   (Replaces: W10761964)				$ 342.45
7	2309489S		Trim, Door Top (aluminum)		Appelez-nous	-
8	2309498S		Trim, Door (hinge Side) (aluminum)				$ 291.94
9	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
10	2309497S		Trim, Door (handle Side) (aluminum)				$ 290.72
11	2207457		Trim, Corner				$ 51.41
12	2259448S		Cover, Trim (hinge Side) (aluminum)				$ 161.55
13	2314003S		Cover, Trim (handle Side) (aluminum)				$ 157.17
14	2309495S		Trim, Door Bottom (aluminum)		Appelez-nous	-
15	W10323602		Bin, Shallow				$ 88.23
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
