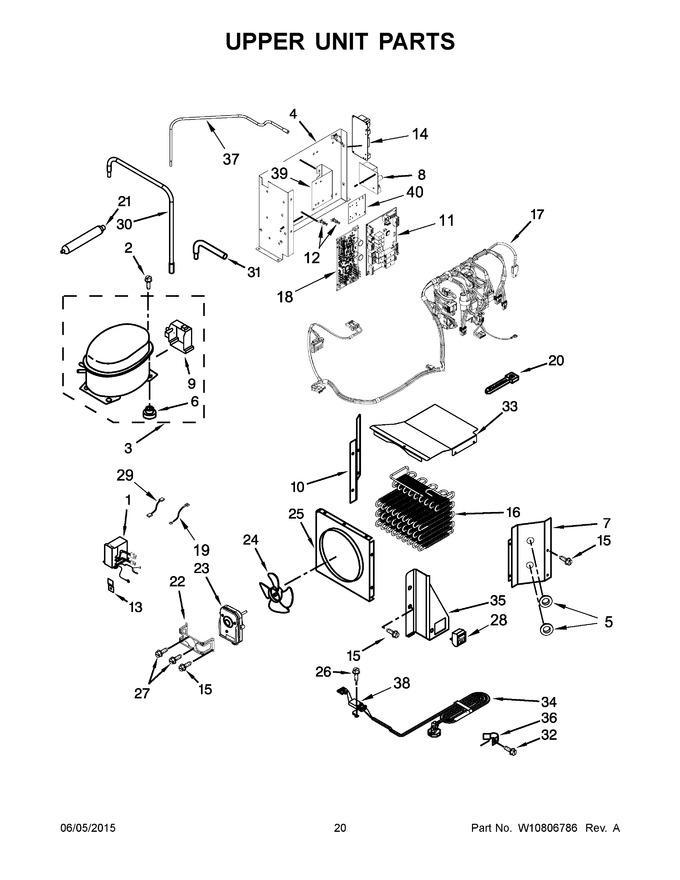

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10449006		Assembly, Inverter Box   (Replaces: W10449006)				$ 347.43
2	876811		Screw   (Replaces: 489373)				$ 7.01
3	W10841139		Compressor   (Replaces: W10173296)			Immediately	$ 454.96
4	W10550831		Housing, Control Board Mounting		Appelez-nous	-
5	W10587113		Grommet		Appelez-nous	-
6	876811		Grommet   (Replaces: 1100826)				$ 7.01
7	WPW10525179		Support, Condenser (right Hand)   (Replaces: W10525179)				$ 99.79
8	WP2259350		Board, Power Supply   (Replaces: 2259350)			Immediately	$ 130.82
9	2215676		Cover, Terminal				$ 84.92
10	WPW10525177		Support, Condenser (left Hand)   (Replaces: W10525177)				$ 99.79
11	WPW10200659		Control, Electronic   (Replaces: W10200659)			Immediately	$ 370.15
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 16.93
13	2256328		Bracket, Inverter Mounting		Appelez-nous	-
14	WPW10624574		Supply, Power   (Replaces: W10624574)			Immediately	$ 233.45
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
16	W10591457		Condenser				$ 223.70
17	W10774818		Assembly, Unit Wire		Appelez-nous	-
18	W10830288		Led Control   (Replaces: W10635302)			Immediately	$ 443.71
19	WPW10483905		Jumper, Inverter   (Replaces: W10483905)				$ 107.51
20	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 7.47
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 27.70
22	W10414681		Bracket, Fan Motor				$ 71.58
23	W11578915		Motor, Condenser   (Replaces: 2188875)			Immediately	$ 77.99
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 89.84
25	W10415670		Orifice, Fan		Appelez-nous	-
26	00487294		Screw   (Replaces: 487294)				$ 157.58
27	WP8533993		Screw   (Replaces: W10146359)				$ 10.09
28	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 98.17
29	WPW10495645		Ground, Inverter   (Replaces: W10495645)				$ 11.42
30	W10624944		Tube, Drier Transition				$ 31.73
31	W10528578		Tube, Process				$ 35.84
32	W11624204		Screw   (Replaces: 486194)				$ 13.25
33	W10525175		Cover, Condenser Support				$ 65.14
34	2310196		Cord, Power			Immediately	$ 79.67
35	W10321055		Bracket, Control Assembly		Appelez-nous	-
36	549193		Clamp, Power Cord				$ 12.65
37	W10648264		Tube, Heat Loop Transition				$ 69.40
38	2310195		Assembly, Jumper Wire (power Switch To Power Cord)				$ 110.88
39	W10761479		Plate, Circuit Board		Appelez-nous	-
40	W10770059		Plate, Circuit Board (top)				$ 130.27
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge 6.75 Oz. (r-134a)		Appelez-nous	-
