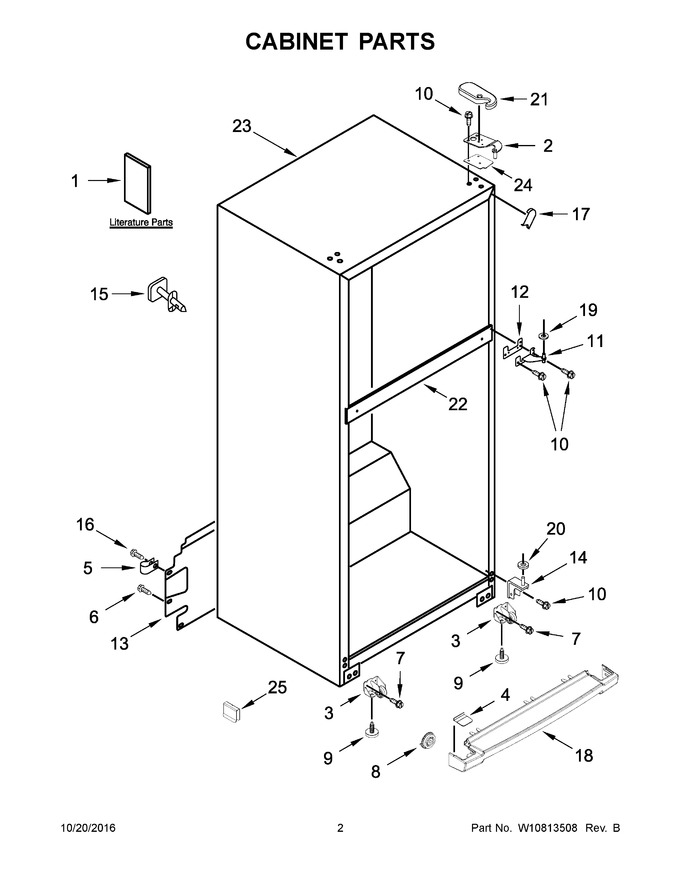

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10469940 | Service & Wiring Sheet |
|
- | |||||
| 2 | WPW10300065 | Hinge (top) (Replaces: W10300069) |
|
$ 12.55 | |||||
| 3 | WPW10359256 | Roller Assembly, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 48.99 | ||||
| 4 | WPW10353932 | Endcap, Grille (grey) (Replaces: W10353932) |
|
$ 76.95 | |||||
| 5 | 489348 | Clamp, Tube |
|
- | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 7 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 11.95 | |||||
| 8 | W10331226 | Drum, Toe Grille |
|
$ 42.68 | |||||
| 9 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 13 | W10425028 | Cover, Unit |
|
- | |||||
| 14 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
Immediately | $ 8.35 | ||||
| 15 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 16 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 17 | W10851579 | Corner Filler (grey) (Replaces: W10283961) |
|
Immediately | $ 6.80 | ||||
| 18 | W10353944 | Grille (grey) |
|
$ 137.40 | |||||
| 19 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 20 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 21 | W10353950A | Cover, Hinge (left Hand (grey)) (Replaces: W10353950) |
|
$ 21.94 | |||||
| 22 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 23 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 24 | W10883637 | Shim, Top Hinge |
|
$ 14.36 | |||||
| 25 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 1A | W10462294 | Use & Care Guide |
|
- | |||||
| 21A | W10353947A | Cover, Hinge (right Hand (grey)) (Replaces: W10353947) |
|
$ 12.85 | |||||
| 3A | WPW10359255 | Roller Assembly, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 90.58 |
