View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts

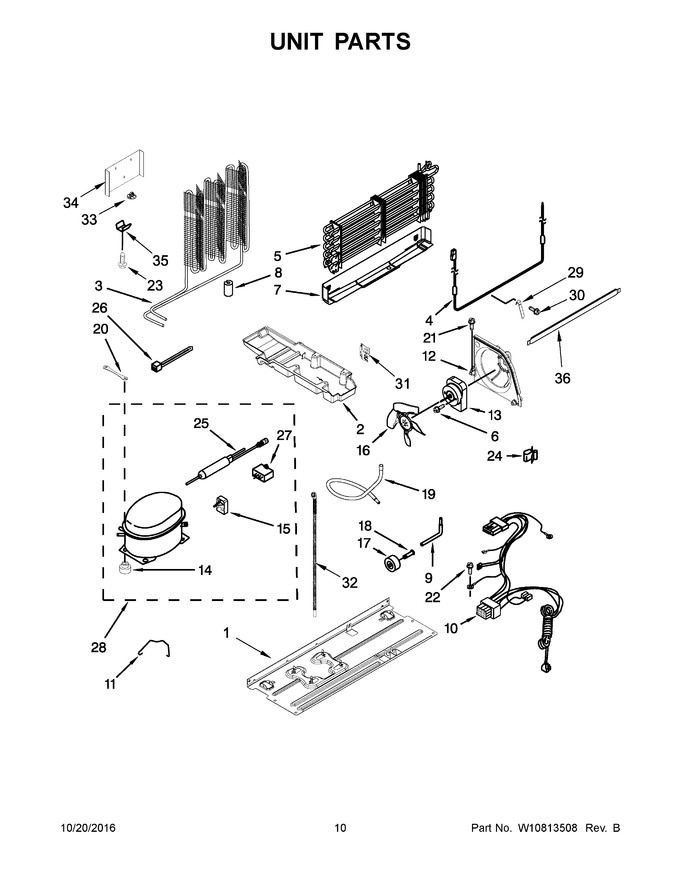

06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11396825 | Baseplate (Replaces: W10300118) |
|
$ 126.14 | |||||
| 2 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 136.76 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 250.38 | |||||
| 4 | W10405108 | Heater, Defrost |
|
- | |||||
| 5 | WPW10314205 | Assembly, Evaporator (Replaces: W10314205) |
|
$ 325.25 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 | |||||
| 8 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.28 | |||||
| 9 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 97.75 | |||||
| 10 | W10637517 | Wire Assembly, Unit |
|
- | |||||
| 11 | 2302129 | Strap, Bale |
|
- | |||||
| 12 | WP2315541 | Bracket, Condenser Fan (Replaces: 2315541) |
|
Immediately | $ 79.19 | ||||
| 13 | WP2321271 | Motor, Condenser (Replaces: 2321271) |
|
$ 292.92 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 15 | WP2312007 | Start Device (Replaces: 2312007) |
|
$ 170.72 | |||||
| 16 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 91.34 | ||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 19 | W10466682 | Tube, Suction |
|
$ 39.90 | |||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 18.73 | ||||
| 21 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 22 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 23 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 24 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 10.01 | |||||
| 25 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 51.42 | ||||
| 26 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 27 | 2321245 | Capacitor |
|
- | |||||
| 28 | W10183407 | Compressor (Replaces: W10120455) |
|
$ 392.05 | |||||
| 29 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 18.11 | |||||
| 30 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 31 | W10314197 | Bracket, Evaporator |
|
$ 21.10 | |||||
| 32 | W10475011 | Tube, Drain |
|
$ 28.60 | |||||
| 33 | W10815861 | Clip, Bottom Cover |
|
$ 14.22 | |||||
| 34 | W10349515 | Cover, Condenser Bottom |
|
- | |||||
| 35 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 17.44 | |||||
| 36 | W10300902 | Cover, Heater |
|
$ 26.61 | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | 978030 | Valve, Access |
|
$ 123.53 | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | N/P | Refrigerant Charge 3.7 Oz. (r-134a) |
|
- |
