View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

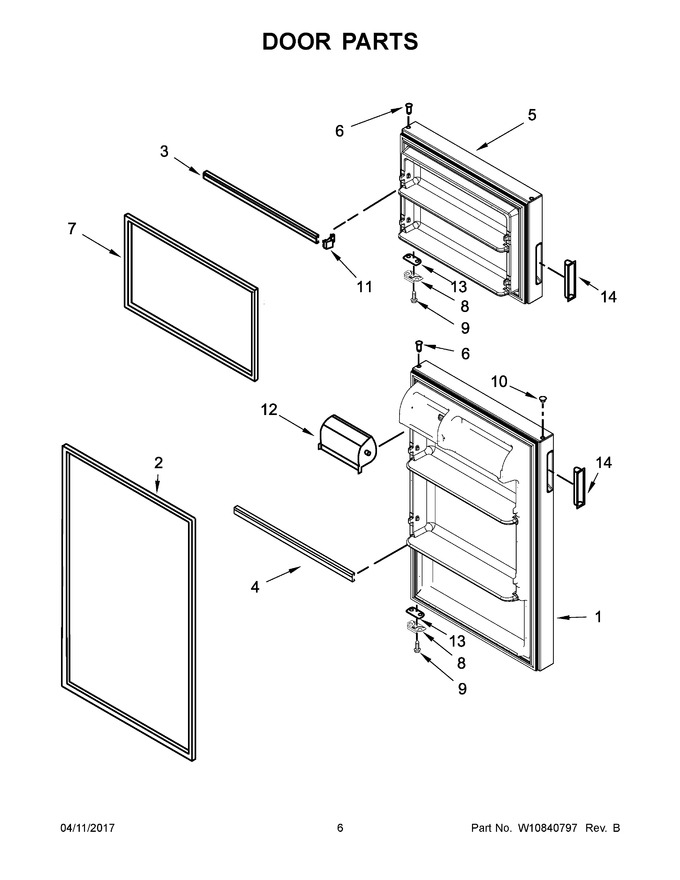

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10570557 | Refrigerator Door (includes Illustration 2 & Door Handle) (white) (Replaces: W10570557) |
|
$ 627.98 | |||||
| 2 | WP2319265T | Door Gasket, Magnetic (white) (Replaces: 2264728) |
|
Immediately | $ 210.38 | ||||
| 3 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 4 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 114.61 | ||||
| 5 | LW10573399 | Freezer Door (includes Illustration 7 & Door Handle) (white) (Replaces: W10573399) |
|
$ 616.70 | |||||
| 6 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 7 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 238.68 | ||||
| 8 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 9 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 10 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 11 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 12 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 65.89 | ||||
| 13 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.80 | ||||
| 14 | W10182940 | Handle, Cup (white) |
|
$ 65.17 |
