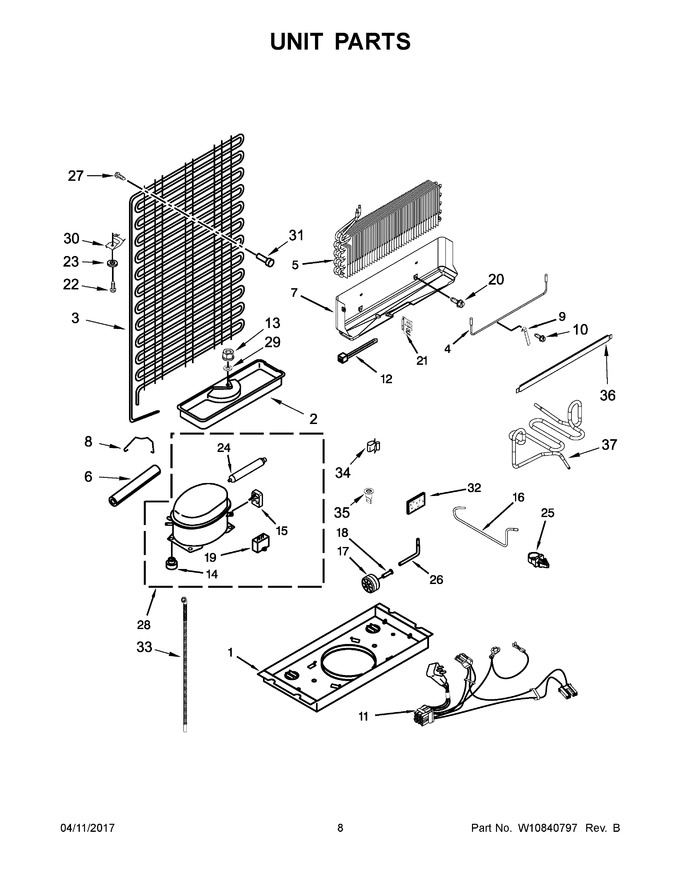

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222451 | Plate, Compressor Support |
|
$ 32.07 | |||||
| 2 | W10174378 | Tray, Evaporator |
|
$ 156.50 | |||||
| 3 | WPW10219348 | Condenser (Replaces: W10219348) |
|
$ 279.04 | |||||
| 4 | W11220371 | Heater, Defrost (Replaces: W10570573) |
|
$ 136.64 | |||||
| 5 | W10836706 | Assembly, Evaporator (Replaces: W10570565) |
|
Immediately | $ 388.14 | ||||
| 6 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 19.19 | ||||
| 7 | W10570572 | Shield, Heat |
|
$ 29.51 | |||||
| 8 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 10.68 | ||||
| 9 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 18.11 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 11 | W11238425 | Harness, Unit (Replaces: W10578837) |
|
$ 81.77 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 13 | 285002 | Nut, Hex (Replaces: 489153) |
|
$ 11.57 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 15 | WPW10448874 | Device, Start (Replaces: W10448874) |
|
Immediately | $ 122.47 | ||||
| 16 | W10608276 | Tube, Suction |
|
$ 39.20 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 6.80 | |||||
| 19 | WPW10662129 | Capacitor (Replaces: W10658690) |
|
Immediately | $ 52.97 | ||||
| 20 | 8533919 | Screw |
|
- | |||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 21.10 | |||||
| 22 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 23 | 8526417 | Washer (Replaces: VS611) |
|
$ 13.18 | |||||
| 24 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 51.42 | ||||
| 25 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 26 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 97.75 | |||||
| 27 | 8533892 | Screw |
|
- | |||||
| 28 | W10233960 | Compressor (Replaces: W10445423) |
|
Immediately | $ 485.41 | ||||
| 29 | WP487802 | Washer (Replaces: 487802) |
|
Immediately | $ 7.12 | ||||
| 30 | 4386951 | Clip, Condenser (Replaces: 2172892) |
|
- | |||||
| 31 | 2258452 | Spacer, Condenser |
|
- | |||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 33 | W10286975 | Tube, Drain |
|
$ 27.41 | |||||
| 34 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 35 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 59.00 | ||||
| 36 | W10300902 | Cover, Heater |
|
$ 26.61 | |||||
| 37 | W10609247 | Tube, Discharge |
|
$ 106.18 | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 123.53 | |||||
| NI | N/P | Refrigerant Charge 4.5 Oz. (r-134a) |
|
- |
