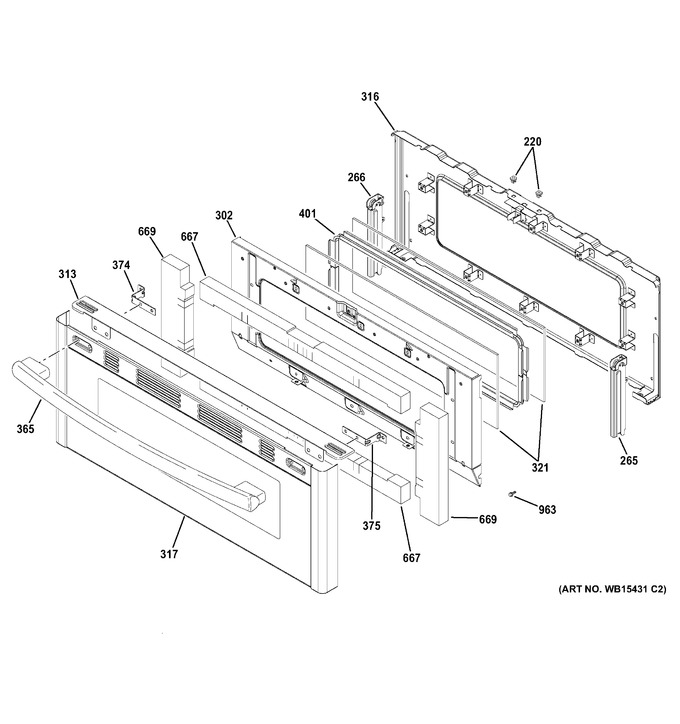

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 220 | WB2K8 | Grommet |
|
- | |||||
| 265 | WB10K10025 | Hinge Receiver Rt |
|
- | |||||
| 266 | WB10K10026 | Hinge Receiver Lf |
|
- | |||||
| 302 | WB35X21704 | Guard Insulation |
|
- | |||||
| 313 | WB07X26421 | Cover Vent Trim |
|
- | |||||
| 316 | WB55K10081 | Liner Door Assembly |
|
- | |||||
| 317 | WB56X24943 | Glass Door Asm |
|
- | |||||
| 321 | WB57K10156 | Crystal Window |
|
- | |||||
| 365 | WB15X21772 | Handle (wh) |
|
- | |||||
| 374 | WB02X24913 | Bracket Handle |
|
- | |||||
| 375 | WB02X24914 | Bracket Handle |
|
- | |||||
| 401 | WB36K10985 | Frame Window Pack Asm |
|
- | |||||
| 667 | WB34X21730 | Insulation Door |
|
- | |||||
| 669 | WB34X21729 | Insulation Door |
|
- | |||||
| 963 | WB01K10116 | Scr 10-16 Ab Trw20 1/2 |
|
- |
