View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Gas & Burner Parts
2 - Control Panel & Cooktop
3 - Body Parts
4 - Upper Oven
5 - Lower Oven
6 - Upper Door
7 - Lower Door
8 - Convection Fan
SELECT A DIAGRAM
New Model Search:

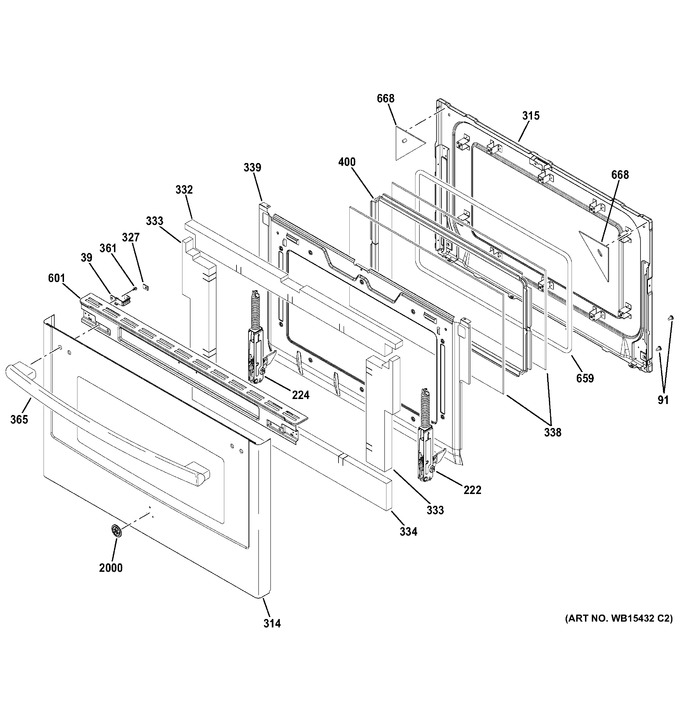

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 39 | WB02X20520 | Bracket Handle |
|
- | |||||
| 91 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 | ||||
| 222 | WB10X24916 | Hinge Door Rh |
|
- | |||||
| 224 | WB10X24917 | Door Hinge Lh |
|
- | |||||
| 314 | WB56X24944 | Glass Panel Door Asm |
|
- | |||||
| 315 | WB56X24931 | Liner Door Weld Assembly |
|
- | |||||
| 327 | WS01A01047 | Speednut (Replaces: WB1K2) |
|
$ 3.57 | |||||
| 332 | WB34X21727 | Insulation Door |
|
- | |||||
| 333 | WB34X21726 | Insulation Door |
|
- | |||||
| 334 | WB34X21728 | Insulation Door |
|
- | |||||
| 338 | WB57K10155 | Crystal Window |
|
$ 47.93 | |||||
| 339 | WB56K10079 | Guard Insulation |
|
- | |||||
| 361 | WB1K31 | Screw 10-16 Pl Pnt 2.5 S |
|
- | |||||
| 365 | WB15X21772 | Handle (wh) |
|
- | |||||
| 400 | WB36K10986 | Frame Window Pack Asm |
|
- | |||||
| 601 | WB56X25945 | Top Cover Asm. |
|
- | |||||
| 659 | WB35X21685 | Cord Fiber Glass |
|
- | |||||
| 668 | WB35X21691 | Insulation Door |
|
- | |||||
| 2000 | WB02T10589X | Ge Badge Gray |
|
- |
