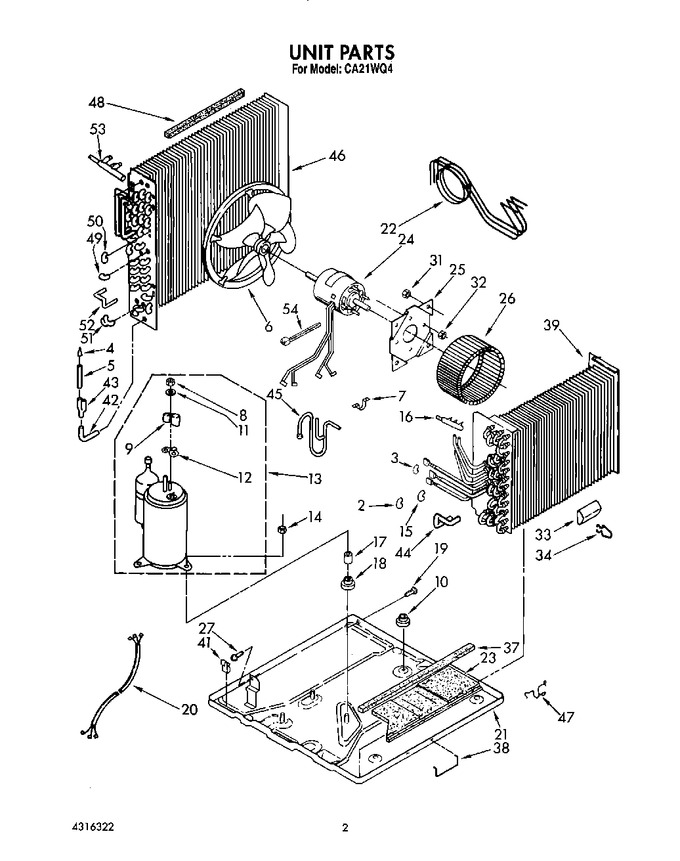

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	855199		Bend, Return Evaporator (7)		Appelez-nous	-
3	997669		Bend, Return Evaporator (16)		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	1155598		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	1158987		Blade, Fan		Appelez-nous	-
7	648791		Clamp, Cable		Appelez-nous	-
8	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
9	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
10	948130		Bushing, Base Condenser		Appelez-nous	-
11	950037		Gasket, Nut		Appelez-nous	-
12	WP950035		Gasket, Cover   (Replaces: 950035)				$ 78.01
13	819492		Compressor		Appelez-nous	-
14	858121		Locknut (3)		Appelez-nous	-
15	998682		Bend, Return Evaporator (2)		Appelez-nous	-
16	1155510		Tube, Manifold Header		Appelez-nous	-
17	950020		Sleeve (3)		Appelez-nous	-
18	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
19	WP488729		Screw, 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
20	484136		Harness, Wiring		Appelez-nous	-
21	950364		Base		Appelez-nous	-
22	1156253		Tube, Restrictor (3) (length 44.0``)		Appelez-nous	-
23	997236		Insulation, Base		Appelez-nous	-
24	952072		Motor, Fan		Appelez-nous	-
25	998024		Plate, Mounting		Appelez-nous	-
26	1158443		Wheel, Blower		Appelez-nous	-
27	WP308685		Screw, S.m. 10 X 1/2 (repair)   (Replaces: 488861)			Immediately	$ 7.08
27	WP489069		Screw, S.m. 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
31	858122		Locknut		Appelez-nous	-
32	WP488130		Nut, 8-32   (Replaces: 488130)				$ 6.59
33	996773		Anticipator		Appelez-nous	-
34	475577		Clip, Anticipator		Appelez-nous	-
37	1162509		Seal		Appelez-nous	-
38	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
39	1155435		Evaporator		Appelez-nous	-
41	642684		Clamp, Tube (2)		Appelez-nous	-
42	1155580		Tube, Connecting		Appelez-nous	-
43	947364		Tube, Flow Divider		Appelez-nous	-
44	1155432		Tube, Riser (2)		Appelez-nous	-
45	1155593		Tube, Suction		Appelez-nous	-
46	1155492		Condenser		Appelez-nous	-
47	852272		Clip, Front Mtg. (3)		Appelez-nous	-
48	948600		Seal,		Appelez-nous	-
49	708532		Bend Return (25)		Appelez-nous	-
50	708531		Bend Return (4)		Appelez-nous	-
51	1156107		Bend Return (1)		Appelez-nous	-
52	1155512		Tube, Crossover		Appelez-nous	-
53	1155511		Header, Manifold		Appelez-nous	-
54	WPW10339879		Cable Tie Condenser Top   (Replaces: 857547)				$ 7.47
	LIT4316322		List, Repair Parts		Appelez-nous	-
	LIT1161930		Instructions, Installation		Appelez-nous	-
	LIT1161908		Guide, Use And Care		Appelez-nous	-
	LIT950700		Wiring Diagram		Appelez-nous	-
	LIT1156199		Sheet, Tech		Appelez-nous	-
