SELECT A DIAGRAM
02 - Unit, Lit/optional
03 - Air Flow And Control
04 - Cabinet
05 - Optional
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:

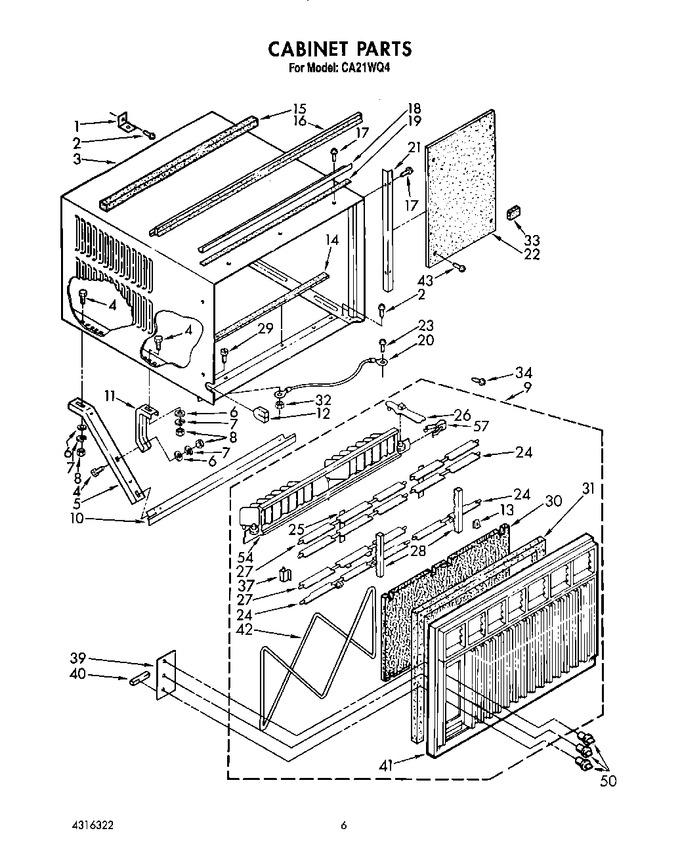

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 644228 | Bracket |
|
- | |||||
| 2 | 487371 | Screw, 10 X 3/4 |
|
- | |||||
| 3 | 1157893 | Cabinet Also Order: |
|
- | |||||
| 3 | 1157053 | Insulation (3) |
|
- | |||||
| 4 | 488750 | Bolt, 1/4 X 3/4 (6) |
|
- | |||||
| 5 | 649945 | Support, Cabinet (2) |
|
- | |||||
| 6 | 488808 | Washer (6) |
|
- | |||||
| 7 | 486009 | Lockwasher (6) |
|
- | |||||
| 8 | 486035 | Nut, Hex (1/4) (6) |
|
- | |||||
| 9 | 1159942 | Front, Cabinet (assembly) |
|
- | |||||
| 10 | 649947 | Bracket, Cabinet Support |
|
- | |||||
| 11 | 649946 | Retainer, Cabinet Support (2) |
|
- | |||||
| 12 | 647849 | Grommet, Wiring |
|
- | |||||
| 13 | 1157140 | Clip, Front (2) |
|
- | |||||
| 14 | 852220 | Seal, Bottom |
|
- | |||||
| 15 | 469877 | Seal, Meeting Rail |
|
- | |||||
| 16 | 644288 | Gasket, Sash |
|
- | |||||
| 17 | WP489069 | Screw, No.8 X 32 (7) (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 18 | 644271 | Angle, Top |
|
- | |||||
| 19 | 855265 | Strip, Seal |
|
- | |||||
| 20 | 857022 | Ground Wire (base To Cabinet) |
|
- | |||||
| 21 | 644272 | Angle (2) |
|
- | |||||
| 22 | 644303 | Board, Filler |
|
- | |||||
| 23 | 488853 | Screw, 8 X 3/8 |
|
- | |||||
| 24 | 947268 | Louver, Horizontal (notched) |
|
- | |||||
| 25 | 855998 | Retainer, Louver (4) |
|
- | |||||
| 26 | 947267 | Handle, Horizontal Louver |
|
- | |||||
| 27 | 947269 | Louver, Horizontal (4) |
|
- | |||||
| 28 | 00649955 | Rack, Louver (2) (Replaces: 649955) |
|
$ 488.32 | |||||
| 29 | 488854 | Screw, 8 X 3/8 |
|
- | |||||
| 30 | 649958 | Filter, Air |
|
- | |||||
| 31 | 649725 | Seal, Front (top & Sides) |
|
- | |||||
| 31 | 649726 | Seal, Front (bottom) |
|
- | |||||
| 32 | WP486255 | Nut, 8-32 (Replaces: 486529) |
|
$ 5.82 | |||||
| 33 | 995274 | Spacer, Block (4) |
|
- | |||||
| 34 | 1157141 | Screw, Front (2) |
|
- | |||||
| 37 | 855999 | Clip, Horizontal Louver (4) |
|
- | |||||
| 39 | 1162141 | Plate, Escutcheon |
|
- | |||||
| 40 | 469175 | Spacer, Escutcheon Plate (3) |
|
- | |||||
| 41 | 1159844 | Front, Cabinet |
|
- | |||||
| 42 | 476707 | Retainer, Filter |
|
- | |||||
| 43 | 1159222 | Screw, 8 X 3/8 (4) |
|
- | |||||
| 50 | 953054 | Knob, Control (3) |
|
- | |||||
| 54 | 953064 | Vertical Louver |
|
- | |||||
| 57 | 641484 | Spring, Detent (2) |
|
$ 150.14 |
