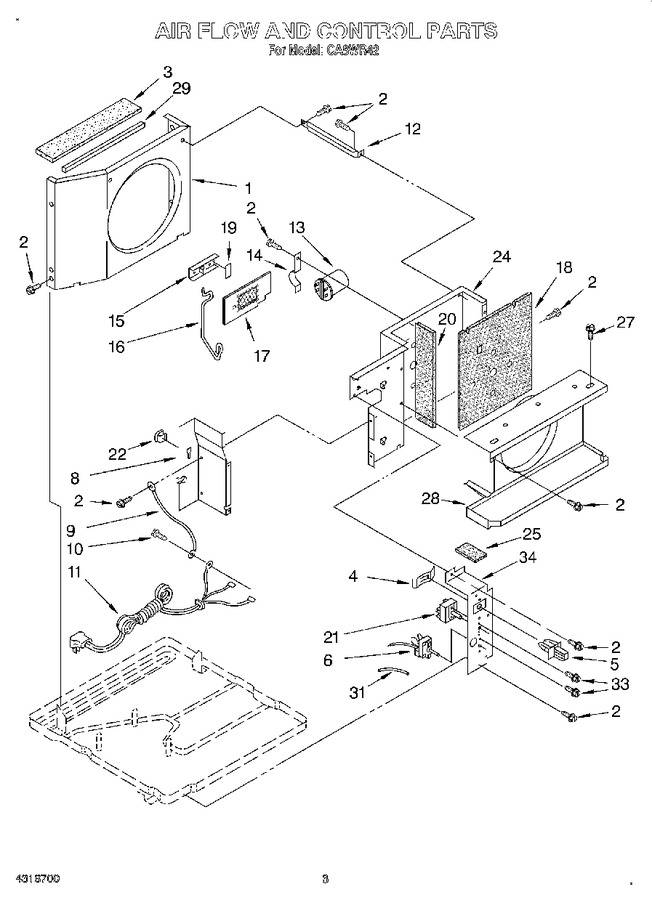

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	856037		Shroud, Condenser		Appelez-nous	-
2	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
3	WP854334		Seal, Condenser   (Replaces: 859600)				$ 12.55
4	858765		Retainer, Exhaust Door		Appelez-nous	-
5	1167161		Actuator, Exhaust Door		Appelez-nous	-
6	1166758		Thermostat		Appelez-nous	-
8	994561		Extension, Dividing Wall		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
10	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
11	1165241		Cord, Appliance		Appelez-nous	-
12	1156536		Support, Unit		Appelez-nous	-
13	1162599		Capacitor, Running		Appelez-nous	-
14	1167611		Bracket, Capacitor		Appelez-nous	-
15	856679		Door, Exhaust		Appelez-nous	-
16	856042		Arm, Exhaust Door		Appelez-nous	-
17	1162926		Screen, Insulation Assembly		Appelez-nous	-
18	1166338		Insulation (back, Dividing Wall)		Appelez-nous	-
19	1159175		Spacer		Appelez-nous	-
20	1166339		Insulation (side, Dividing Wall)		Appelez-nous	-
21	1165243		Switch, Rotary		Appelez-nous	-
22	644401		Clip, Retainer		Appelez-nous	-
24	1167154		Dividing Wall		Appelez-nous	-
25	1158576		Insulation, Control Panel (top)		Appelez-nous	-
27	WP488729		Screw, Sems Sm No.8 X 1/2 (2)   (Replaces: 487910)			Immediately	$ 7.45
28	856039		Shroud Assembly, Evaporator (includes Item 23)		Appelez-nous	-
29	948090		Seal, Condenser Top		Appelez-nous	-
31	475841		Insul., Sleeve		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (2)		Appelez-nous	-
34	996966		Panel, Control		Appelez-nous	-
