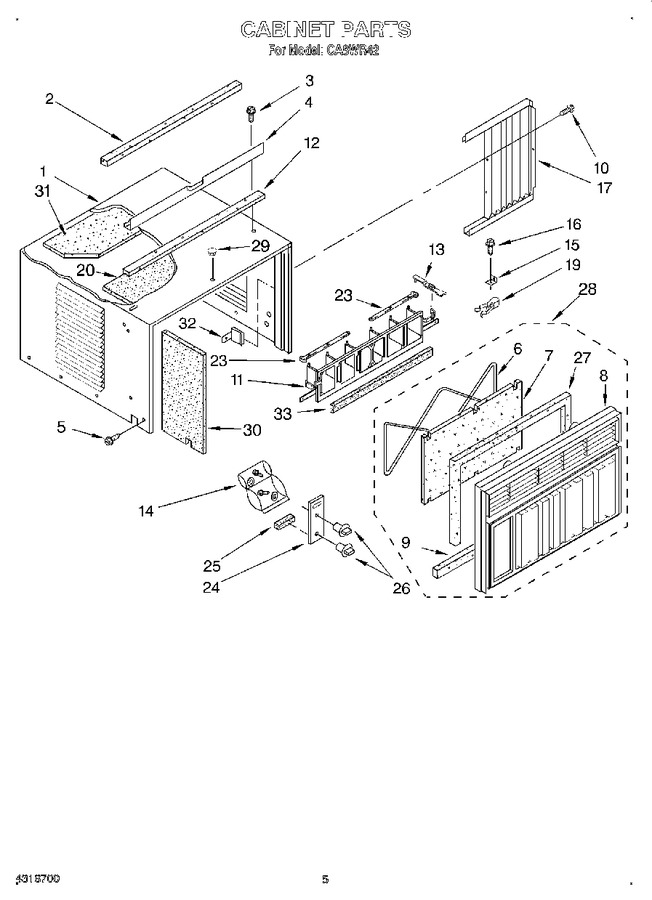

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163513		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP308685		Screw, 10 X 1/2 (3)   (Replaces: 488720)			Immediately	$ 7.08
4	1169001		Channel, Top		Appelez-nous	-
5	WP489069		Screw, 8-3/8 (8)   (Replaces: 1157158)			Immediately	$ 7.56
6	646963		Retainer, Filter		Appelez-nous	-
7	855246		Filter, Air		Appelez-nous	-
8	1159826		Front, Cabinet		Appelez-nous	-
9	852923		Seal, Front		Appelez-nous	-
10	1161561		Screw		Appelez-nous	-
11	1159980		Louver, Vertical		Appelez-nous	-
12	856989		Strip, Seal		Appelez-nous	-
13	1161636		Handle, Louver (2)		Appelez-nous	-
14	476180		Bag, Accessory		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	1164154		Housing, Curtain (left Side) (includes No.22)		Appelez-nous	-
17	1164155		Housing, Curtain (right Side)		Appelez-nous	-
19	644006		Spring, Detent (2)		Appelez-nous	-
20	1163429		Insul. Cab. Top.		Appelez-nous	-
23	855158		Link (2)		Appelez-nous	-
24	1167791		Plate, Escutcheon		Appelez-nous	-
25	470036		Spacer, Escutcheon		Appelez-nous	-
26	1168377		Knob, Control (2) (brown W/ White Indicator)		Appelez-nous	-
27	645883		Seal, Front (top And Sides)		Appelez-nous	-
28	1159825		Front, Complete		Appelez-nous	-
29	1157126		Cover, Hole		Appelez-nous	-
30	1163430		Insulation, Cab. (right, Side)		Appelez-nous	-
30	1163431		Insulation, Cab. (left, Side)		Appelez-nous	-
31	1158501		Insulation Cab. To Cond.		Appelez-nous	-
32	1158294		Clip, Louver		Appelez-nous	-
33	855238		Seal, Vertical Louver Assembly		Appelez-nous	-
