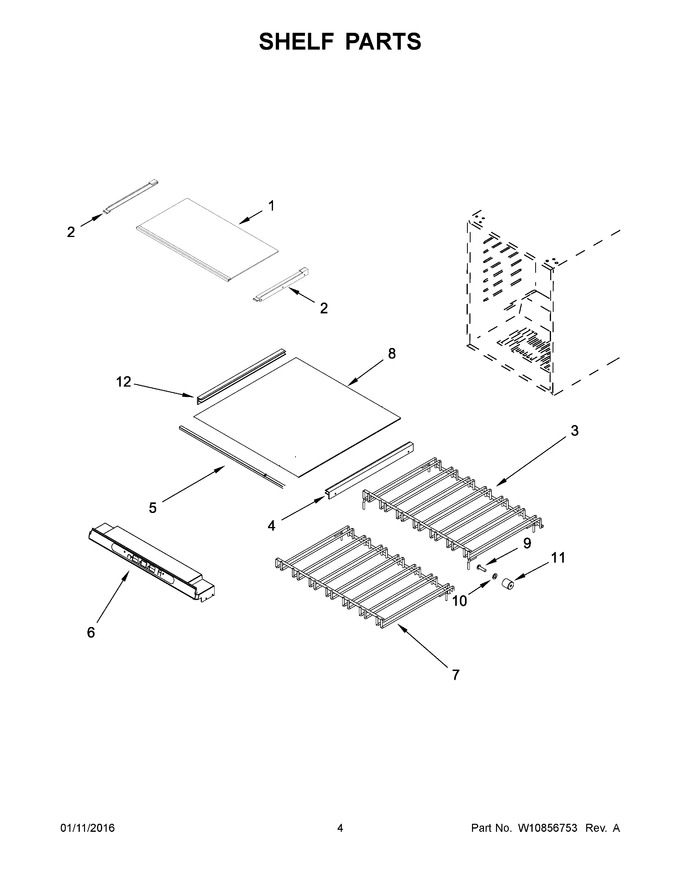

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10322058 | Glass Shelf-upper |
|
- | |||||
| 2 | W10322053 | Support, Shelf (left Hand) |
|
- | |||||
| 3 | W10322055 | Wine Rack-upper |
|
- | |||||
| 4 | W10322052 | Shelf Support Rh |
|
$ 39.17 | |||||
| 5 | W10322057 | Trim, Front |
|
- | |||||
| 6 | W10865698 | Control Panel Assembly (Replaces: W10856830) |
|
- | |||||
| 7 | W10322056 | Wine Rack-lower |
|
- | |||||
| 8 | WPW10322059 | Glass Shelf-lower (Replaces: W10322059) |
|
$ 220.21 | |||||
| 9 | W10322069 | Screw |
|
- | |||||
| 10 | W10322070 | Washer |
|
- | |||||
| 11 | 4344886 | Support, Rubber |
|
- | |||||
| 12 | W10322051 | Shelf Support Lh |
|
- | |||||
| 2A | W10322054 | Support, Shelf (right Hand) |
|
- |
